Good price online

products details

Home > Products >
Oil Immersed Transformer
>
750kva 1500kva 3000kva 3 phase S11 Oil-immersed Transformer for IEC / GB Standard
All Category

Oil Immersed Transformer

Dry Type Transformer

Transformer Substation

High And Low Voltage Switchgear

Single Phase Transformer

Liquid Cooled Energy Storage Cabinet

Top Sale
Contact Us
Mr. Wang
info@tstyelectric.com
15803834403
Contact Now
750kva 1500kva 3000kva 3 phase S11 Oil-immersed Transformer for IEC / GB Standard
  • name
  • name
  • name
  • name
  • name
  • name

750kva 1500kva 3000kva 3 phase S11 Oil-immersed Transformer for IEC / GB Standard

Brand Name: TSTY
Model Number: S11, S13
Price: $1,000.00/units 1-1 units
Detail Information
Product Description
Detail Information
Place of Origin:
Henan, China
Use:
Power
Phase:
Three
Coil Structure:
TOROIDAL
Coil Number:
AUTOTRANSFORMER
Input Voltage:
Other
Output Voltage:
Other
Product Name::
Power Transformer
Certification::
ISO9001
Type::
Oil-filled Transformer
Frequency::
50/60Hz
Material::
Copper / Aluminium
Transformer Type:
S11 Oil-immersed Transformer
Standard::
IEC / GB
Warranty::
2 Years
Vector Group::
Dyn11 / Yyn0
Package::
Wooden Case
Product Description
Products Description

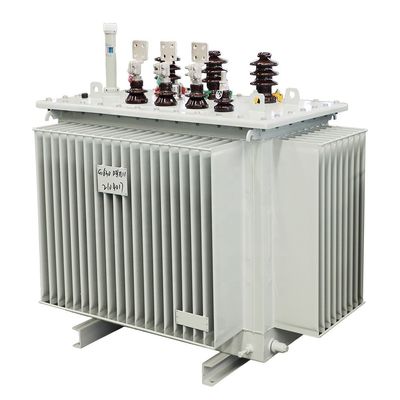

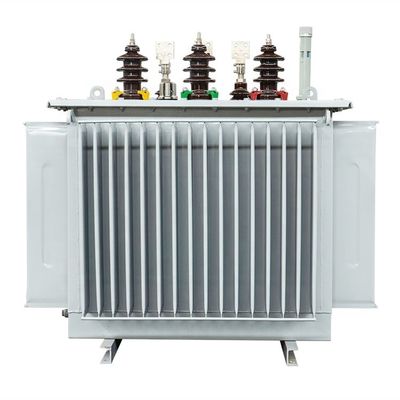

750kva 1500kva 3000kva 3 phase S11 Oil-immersed Transformer for IEC / GB Standard 0

OIL IMMERSED TRANSFORMERS

Main series:S9-M Type Oil lmmersed Power Transforme,S11 Electric Oil Immersed PowerTransformer,S11-M.ZT On-load Tap Changed(OLTC)Power Transformer with Adjustable Capacity,S13 Electric Oillmmersed Power Transformer,S13-MRL Series Three-dimensional Wound Core Power Transformer

The S9-M type transformer introduces new international technology, adopts a fully oil-filled sealed type, without an oil conservator, and the transformer changes its oil body due to changes in temperature and load,which is completely adjusted bythe flexibility of the transformer tank. The no-load loss of the transformer is 30% lower than that of the S7 type,and it has strong lightning resistance and short-circuit resistance.The energy-saving effect is more better, and the outer size of the transformer is compact.

Model Description:
750kva 1500kva 3000kva 3 phase S11 Oil-immersed Transformer for IEC / GB Standard 1
750kva 1500kva 3000kva 3 phase S11 Oil-immersed Transformer for IEC / GB Standard 2
Technical Parameter for S11 Series 6kv - 11kv No-load Voltage Regulation Transformers









Rated Capacity (KVA)
Voltage Combination


Connection Group Symbol
No-load Loss R(W)
Load Loss R(W)
Impedance Voltage(%)
No-load Current (%)
L*W*H (mm)

High Voltage(KV)
Tapping Range of High Voltage
Low Voltage (KV)






30
6 6.3 10 10.5 11
±5% ±2x2.5%
0.4
480480Dyn11 Yzn11 Yyn0
100
630/600
4
2.8
980*735*1145
50




130
910/870

2.5
1017*758*1205
63




150
1090/1040

2.4
1035*785*1285
80




180
1310/1250

2.2
1065*800*1290
100




200
1580/1500

2.1
1072*820*1305
125




240
1890/1800

2
1155*1105*1310
160




280
2310/2200

1.9
1235*850*1535
200




340
2730/2600

1.8
1282*860*1557
250




400
3200/3050

1.7
1310*940*1605
315




480
3830/3650
4
1.6
1465*1120*1915
400




570
4520/4300

1.5
1440*1165*1725
500




680
5410/5150

1.4
1510*1250*1845
630




810
6200
4.5
1.3
1650*1140*1920
800




980
7500

1.2
2125*1175*2315
1000




1150
10300

1.1
2150*1380*2570
1250




1360
12000

1
2355*1485*2570
1600




1640
14500

0.9
2335*1750*2630
2000




1940
18300
5
0.4
1940*1400*1700
2500




2290
21200

0.4
2050*1480*1800
Note: The data in the table is subject to change as required.









750kva 1500kva 3000kva 3 phase S11 Oil-immersed Transformer for IEC / GB Standard 3
750kva 1500kva 3000kva 3 phase S11 Oil-immersed Transformer for IEC / GB Standard 4
750kva 1500kva 3000kva 3 phase S11 Oil-immersed Transformer for IEC / GB Standard 5

Product Standard

+ IEC60076 + GB/T 1094.1~2-1996 Power Transformer + GB/T 1094.3.5-2003 Power Transformer + GB/T6451-2008 Technical Parameters and Requirements for Three-phase Oil-immersed Power Transformers

Applicable Environment
+ High ambient temperature: +40℃+ Low ambient temperature: -25℃ + Altitude: <1000m + Monthly average relative humidity: 90% (20℃) + Installation location: used in chemical plants, factories, remote places and harsh .
We can also customize according to your demand.
Product Details
750kva 1500kva 3000kva 3 phase S11 Oil-immersed Transformer for IEC / GB Standard 6

Iron Core

The company has its own silicon steel sheet shearing line, the core is made of laser-scored high-conductivity silicon steel sheet---quality assurance and cost reduction. Compared with similar products, no-load loss can be reduced by 4-6%.
750kva 1500kva 3000kva 3 phase S11 Oil-immersed Transformer for IEC / GB Standard 7

Transformers

Cylindrical, foil, spiral, continuous and other structures ------ to meet the diversified needs of customers; the end angle ring effectively improves the coil characteristics under the surge voltage ----- to make the voltage distribution more uniform
750kva 1500kva 3000kva 3 phase S11 Oil-immersed Transformer for IEC / GB Standard 8

Oil tank

35KV Fuel tank The oil tank adopts barrel or bell-type structure ---- structure is more stable, the heat dissipation element adopts chip type radiator ----- better heat dissipation effect
750kva 1500kva 3000kva 3 phase S11 Oil-immersed Transformer for IEC / GB Standard 9

Oil tank

11KV oil tank
The tank frame adopts the angle steel reinforced structure ---- to strengthen the mechanical strength, the production process adopts water pressure, air pressure, oil pressure three times to test the leakage ----- to ensure that the tank is not leaking.
Product Application
750kva 1500kva 3000kva 3 phase S11 Oil-immersed Transformer for IEC / GB Standard 10
Oil-immersed transformers can be widely used in power grids, industrial and mining enterprises, construction projects, oil fields, data centers, computer rooms and other places, both indoors and outdoors.
It is especially suitable for use in flammable, explosive and other places with high fire protection requirements and harsh environments. It can also be used for power and lighting in residential areas, commercial streets, industrial and mining enterprises and rural areas.
It is suitable for important places such as urban power grids, high-rise buildings, business centers, theaters, hospitals, hotels, tunnels, subways, underground power stations, stations, docks, airports, combined substations, etc.
Packaging and Shipping
750kva 1500kva 3000kva 3 phase S11 Oil-immersed Transformer for IEC / GB Standard 11

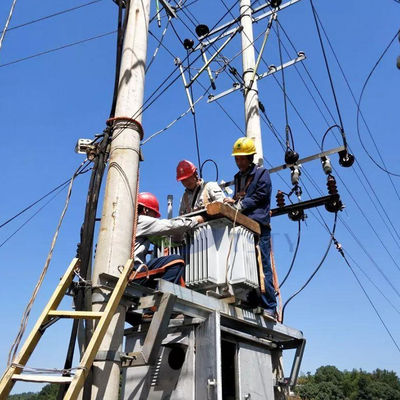

Customer Case
750kva 1500kva 3000kva 3 phase S11 Oil-immersed Transformer for IEC / GB Standard 12
Company Profile
750kva 1500kva 3000kva 3 phase S11 Oil-immersed Transformer for IEC / GB Standard 13

VR
750kva 1500kva 3000kva 3 phase S11 Oil-immersed Transformer for IEC / GB Standard 14

TSTY Electric Co., Ltd.

TSTY Electric Co., Ltd. was established in 2011 and is located in the Industrial Cluster Area of Jiaxian County, Henan Province.It is a digital national high-tech enterprise integrating R&D, production, sales and installation of power equipment. Main products: dry-type transformers, oil-immersed transformers, photovoltaic power generation transformers, high and low voltage switchgear equipment, box-type substations and other power equipment.
The products have passed SGS, intertek, CCC, CE and other international certifications.The company currently exports to more than 30 countries including Mexico, Colombia, Vietnam, Myanmar, Malaysia, Singapore, Zambia, and Zimbabwe.
750kva 1500kva 3000kva 3 phase S11 Oil-immersed Transformer for IEC / GB Standard 15
750kva 1500kva 3000kva 3 phase S11 Oil-immersed Transformer for IEC / GB Standard 16
Certifications:
750kva 1500kva 3000kva 3 phase S11 Oil-immersed Transformer for IEC / GB Standard 17
Customer Visiting:
750kva 1500kva 3000kva 3 phase S11 Oil-immersed Transformer for IEC / GB Standard 18
750kva 1500kva 3000kva 3 phase S11 Oil-immersed Transformer for IEC / GB Standard 19
750kva 1500kva 3000kva 3 phase S11 Oil-immersed Transformer for IEC / GB Standard 20
750kva 1500kva 3000kva 3 phase S11 Oil-immersed Transformer for IEC / GB Standard 21
750kva 1500kva 3000kva 3 phase S11 Oil-immersed Transformer for IEC / GB Standard 22
750kva 1500kva 3000kva 3 phase S11 Oil-immersed Transformer for IEC / GB Standard 23
750kva 1500kva 3000kva 3 phase S11 Oil-immersed Transformer for IEC / GB Standard 24
FAQ
Q:what's your major products?
A: oil immersed transformer, dry type transformer, Transformer Substation, High and Low Voltage Switchgear.
Q: Can your product be customerized?
A: Considering differences in voltage, frequency and other speciality of transformer product in different countries and regions,our product can be customerized according to your requirements.
Q: When can I get the price?
A:Usually we quote within 24 hours after we get your inquiry.
Q: What about lead or shipping time?
A: The lead time depends on the quantity you ordered, generally within 15 days upon receipt of advance payment.
Q: What is the price of shipping?
A: Depending upon the port of delivery, prices varies.
Q: Do you offer guarantee for the products?
A: Yes. We offer at least one years guarantee for all of our transformers.
Q: Your Advantage?
A: 15 years experience, Advanced production equipments, Stable quality, Fast delivery, Professional & good & Prompt service. Also some free parts can be provided for you.
