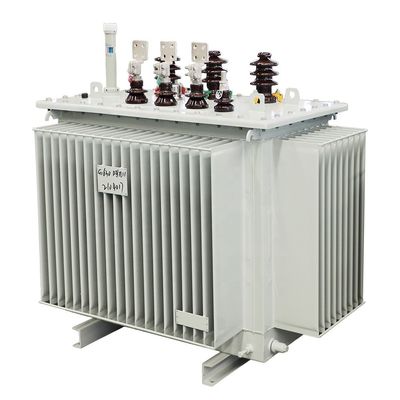

30kVA 1250kVA 2500kVA Electric Power Transformer step down transformer 220v to 110v 2000w
  • name
  • name
  • name
  • name
  • name
  • name

30kVA 1250kVA 2500kVA Electric Power Transformer step down transformer 220v to 110v 2000w

Brand Name: TSTY
Model Number: S11
Price: $999.00/units 1-1 units
Detail Information
Product Description
Detail Information
Place of Origin:
Henan, China
Certification:
ISO9001
Use:
Power
Phase:
Three
Coil Structure:
TOROIDAL
Coil Number:
2
Product Name:
Three Phase Transformer
Type:
Oil-filled Transformer
Frequency:
50/60Hz
Material:
Copper / Aluminium
Standard:
IEC / GB
Transformer Type:
S11 Oil-immersed Transformer
Vector Group:
Dyn11 / Yyn0
Warranty:
2 Years
Package:
Wooden Case
Product Description
Product Description
30kVA 1250kVA 2500kVA Electric Power Transformer step down transformer 220v to 110v 2000w 0
* This model is produced in accordance with Chinese national GB standards and the international IEC standards.
* It uses oil as the main insulation means of the transformer, and relies on oil as the cooling medium, such as oil-immersed natural cooling, oil-immersed air cooling, oil-immersed water cooling and forced oil circulation, etc.
* The main components: iron core, winding, fuel tank, oil pillow, breathing apparatus, explosion-proof tube (pressure release valve), radiator, insulating casing, tap switch, gas relay, thermometer, oil purifier, etc.
* Widely used in high-rise buildings, commercial centers, subways, airports, stations, industrial and mining enterprises, drilling platforms and oil production platforms; especially suitable for use in flammable, explosive and other harsh environments.
30kVA 1250kVA 2500kVA Electric Power Transformer step down transformer 220v to 110v 2000w 1
Product Details

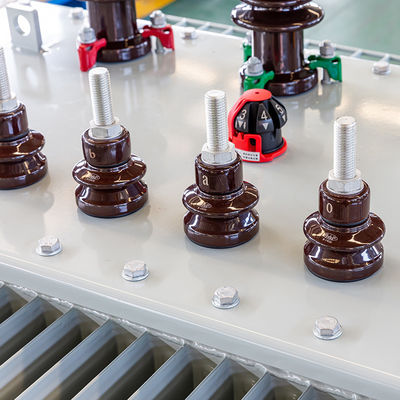

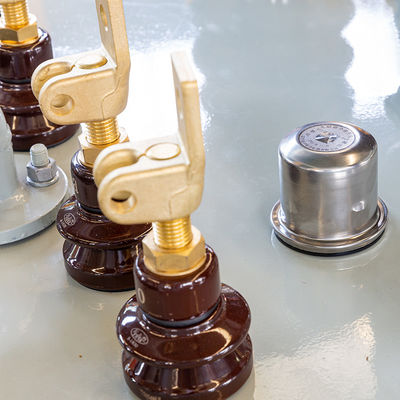

oil immersed power transformer detail
30kVA 1250kVA 2500kVA Electric Power Transformer step down transformer 220v to 110v 2000w 2
Products Description
Technical Parameter for S11 Series 6kv - 11kv No-load Voltage Regulation Transformers
Rated Capacity (KVA)
Voltage Combination
Connection Group Symbol
No-load Loss R(W)
Load Loss R(W)
Impedance Voltage(%)
No-load Current (%)
L*W*H (mm)
High Voltage(KV)
Tapping Range of High Voltage
Low Voltage (KV)
30
6 6.3 10 10.5 11
±5% ±2x2.5%
0.4
Dyn11 Yzn11 Yyn0
100
630/600
4
2.8
980*735*1145
50
130
910/870
2.5
1017*758*1205
63
150
1090/1040
2.4
1035*785*1285
80
180
1310/1250
2.2
1065*800*1290
100
200
1580/1500
2.1
1072*820*1305
125
240
1890/1800
2
1155*1105*1310
160
280
2310/2200
1.9
1235*850*1535
200
340
2730/2600
1.8
1282*860*1557
250
400
3200/3050
1.7
1310*940*1605
315
480
3830/3650
1.6
1465*1120*1915
400
570
4520/4300
1.5
1440*1165*1725
500
680
5410/5150
1.4
1510*1250*1845
630
810
6200
4.5
1.3
1650*1140*1920
800
980
7500
1.2
2125*1175*2315
1000
1150
10300
1.1
2150*1380*2570
1250
1360
12000
1
2355*1485*2570
1600
1640
14500
0.9
2335*1750*2630
2000
1940
18300
5
0.4
1940*1400*1700
2500
2290
21200
0.4
2050*1480*1800
Note: 1. The dimensions and weight are subject to change as required. The data in the two tables are subject to the factory documents.
2. For transformers with a rated capacity of 500kva and below, the load loss value above the diagonal line in the table applies to the Dyn11 or Yzn11 connection group, and the load loss value below the diagonal line applies to the Yyn0 connection group.
3. When the average load rate of the transformer is between 35%-40%, the highest operating efficiency can be obtained by using the loss value in the table.
30kVA 1250kVA 2500kVA Electric Power Transformer step down transformer 220v to 110v 2000w 3
oil immersed power transformer drawing presentation
30kVA 1250kVA 2500kVA Electric Power Transformer step down transformer 220v to 110v 2000w 4

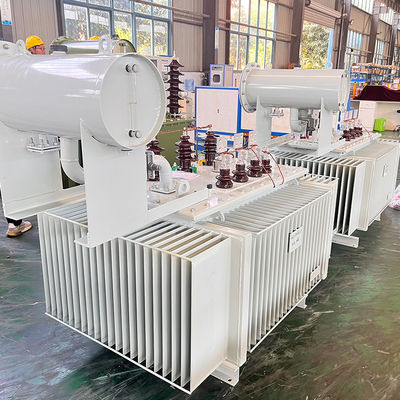

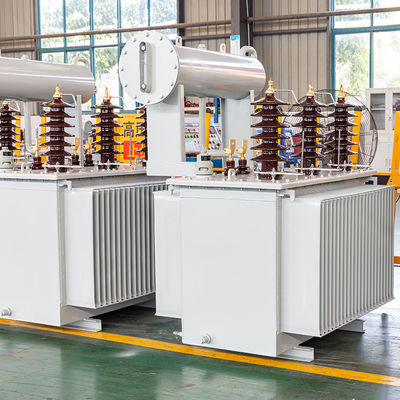

Product Display
30kVA 1250kVA 2500kVA Electric Power Transformer step down transformer 220v to 110v 2000w 5
30kVA 1250kVA 2500kVA Electric Power Transformer step down transformer 220v to 110v 2000w 6
30kVA 1250kVA 2500kVA Electric Power Transformer step down transformer 220v to 110v 2000w 7
30kVA 1250kVA 2500kVA Electric Power Transformer step down transformer 220v to 110v 2000w 8
30kVA 1250kVA 2500kVA Electric Power Transformer step down transformer 220v to 110v 2000w 9
30kVA 1250kVA 2500kVA Electric Power Transformer step down transformer 220v to 110v 2000w 10
Product Features:
The S11 series fully sealed oil-immersed power transformer developed and produced by the company has the advantages of low loss,low noise and high efficiency, which can achieve good energy-saving effects and reduce pollution.
Compared with ordinary oil-immersed transformers, fully sealed transformers eliminate the oil conservator. The change of oil volume is automatically adjusted and compensated by the elasticity of the corrugated sheet of the corrugated oil tank. The transformer is isolated from the air to prevent and slow down the deterioration of oil and insulation aging so as to enhance operational reliability, and maintain normal operation without maintenance.
1.The transformer core is laminated with imported cold-rolled silicon steel sheets, which greatly reduces the no-load loss and no-load current. The core is bound to ensure the tightness of the core and reduce noise.
2.High and low voltage windings are made of oxygen-free copper, and low voltage windings of 500kVA and below adopt double-layer cylindrical structure. 630kVA and above adopt double helix or four helix structure, high voltage winding adopts multilayer cylindrical structure.
3.The transformer connection group uses Dyn11 to reduce the impact of harmonics on the power grid and improve the quality of power supply.
4.The transformer is a fully sealed structure, which prolongs the service life, does not require hanging cores and maintenance.
5.The measured noise value is lower than the standard. After this series of transformers have been transported normally, the relevant parts can be installed without core inspection, and they can be put into operation once the acceptance test is qualified.
30kVA 1250kVA 2500kVA Electric Power Transformer step down transformer 220v to 110v 2000w 11
30kVA 1250kVA 2500kVA Electric Power Transformer step down transformer 220v to 110v 2000w 12
Product Standard:
GB 1094 Power Transformer
GB/T 15164 Oil-immersed Power Transformer Load Guide
GB/T 6451 Three-phase Oil-immersed Power Transformer Technical Parameters and Requirements
GB 2536 Transformer Oil
GB 311.1 Insulation Coordination of High-voltage Power Transmission and Transformation Equipment
GB 10237 Insulation Level of Power Transformer and Air Gap of External Insulation in Insulation Test
DL/T 572 Transformer Operation Regulations

Applicable Environment:
1.High ambient temperature: +40℃
2.Low ambient temperature: -25℃
3.Altitude: <1000m
4.Monthly average relative humidity: 90% (20℃)
5.Installation location: Install in a place where there is no fire, explosion hazard, serious pollution, chemical corrosion and
severe vibration, indoors or outdoors.

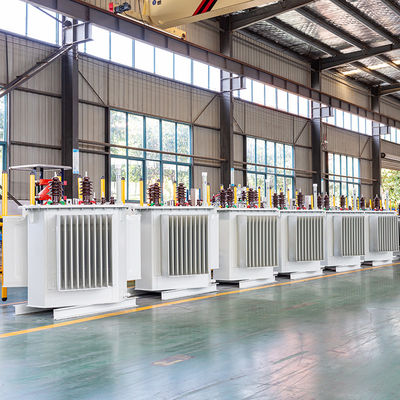

Our Factory
30kVA 1250kVA 2500kVA Electric Power Transformer step down transformer 220v to 110v 2000w 13
TSTY Electric Co., Ltd. was established in 2011 and is an excellent and reliable transformer manufacturer in China. The company mainly develops and produces oil-immersed transformers, dry-type transformers, box-type substations and high and low voltage complete sets of equipment.
The equipment put into production and operation of the project advocates energy saving, intelligence, information and
mechanization. The company has established the Henan Triangle Energy-saving Transformer Engineering Technology Research Center, with 71 utility model patents and 15 invention patents.
With years of accumulation in the transformer industry and strong technological innovation capabilities, it provides comprehensive solutions for the Chinese power industry. The company is a key procurement unit for large-scale national projects such as State Grid, State Railway Administration, Zhengzhou Coal Group, Pingmei Group and South-to-North Water Diversion.
30kVA 1250kVA 2500kVA Electric Power Transformer step down transformer 220v to 110v 2000w 14
30kVA 1250kVA 2500kVA Electric Power Transformer step down transformer 220v to 110v 2000w 15
30kVA 1250kVA 2500kVA Electric Power Transformer step down transformer 220v to 110v 2000w 16
Customer Visiting
30kVA 1250kVA 2500kVA Electric Power Transformer step down transformer 220v to 110v 2000w 17
30kVA 1250kVA 2500kVA Electric Power Transformer step down transformer 220v to 110v 2000w 18
Packaging＆Shipping
30kVA 1250kVA 2500kVA Electric Power Transformer step down transformer 220v to 110v 2000w 19
After-sales service
1.Our company provides you with project design and process design, and designs and manufactures products according to your equipment purchase plan and specific needs. And train technical and operating personnel for you.
2.The newly purchased products are provided with online assistance for installation and debugging. The products are under the lifelong service system. If problems occur in normal use, we will provide solutions within one working day after receiving user's feedback. We will try our best to get the product up and running as soon as possible. And there are regular visits by professional technicians to ensure the long-term, safe and reliable use of our products.
3.We use quality authentic materials, process and manufacture in strict compliance with ISO9001:2000 international quality management to ensure the quality of excellence and the smooth installation!
Customer Case
30kVA 1250kVA 2500kVA Electric Power Transformer step down transformer 220v to 110v 2000w 20
30kVA 1250kVA 2500kVA Electric Power Transformer step down transformer 220v to 110v 2000w 21
30kVA 1250kVA 2500kVA Electric Power Transformer step down transformer 220v to 110v 2000w 22
30kVA 1250kVA 2500kVA Electric Power Transformer step down transformer 220v to 110v 2000w 23
Q: Who are we?
A:We are a big professional manufacturer of oil immersed transformer, dry type transformer, transformer substation,HV and LV switchgear, established in 2011 year .

Q: Why should you buy from us not from other suppliers?
A:As an enterprise specializing in transformer production for 12 years. ISO9001-2008, OHSAS 18001:2007, ISO4001:2004L
.CE,CCC,UL,CSA,TYPE TEST REPORT,etc certificates,Products match IEC, IEEE, ANSI, , GOST standard, we have high quality, fast delivery,guarantee after-sales service and factory price.

Q: How do transformers been shipped?
A: Transformers always been delivered by ship,train or truck for oversea,which with main active body in bulk and accessories in wooden cases.

Q: Can your product be customerized?
A: Considering differences in voltage, frequency and other speciality of transformer product in different countries and
regions,our product can be customerized according to your requirements.

Q: Do you offer guarantee for the products?
A: Yes. We offer at least two years guarantee for all of our transformers.

Q: Do you accept FAT(Factory Acceptance Test)?
A: Yes. It's available. We are responsible for each set transformer's testing.

Q: Do you assign engineer for after-sale service?
A: Yes. For our products,we all show after-sale guide installation adn question inquiry.
