| Brand Name: | TSTY |
| Model Number: | TSTY-215KWh, Fivepower |
| Price: | $89,000.00/units 1-8 units |
|

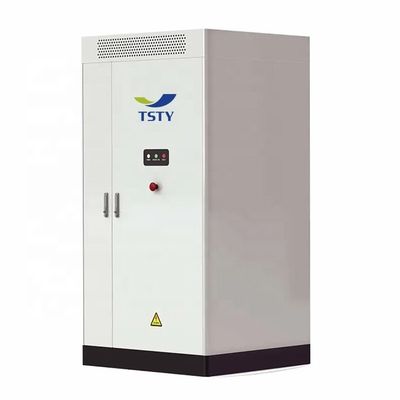

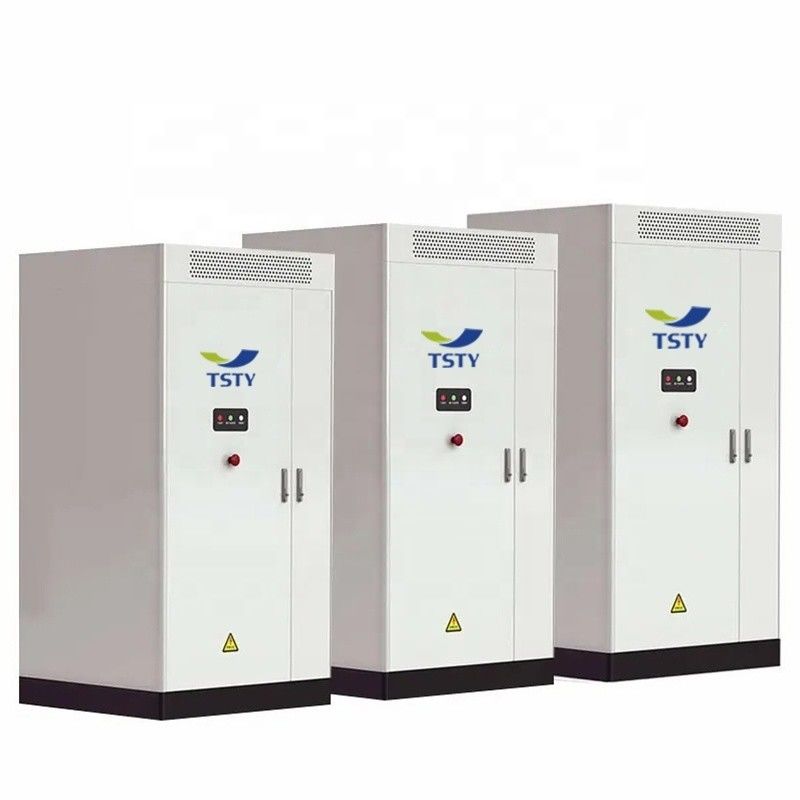

Product Name
|
Liquid cooled energy storage cabinet
|
TSTY-215KWh
|
|
|
Battery Cell type
|
LFP/150Ah
|
|
|
Grouping Configuration
|
2P224s
|
|
AC Side Parameter
|
Battery Pack Configuration
|
2P28S
|
|
|
System Battery Voltage Range
|
650-806.4V
|
|
|
DC Protection
|
160A
|
|
|
Rated AC Power
|
100KW
|
|
|
Max AC Power
|
125KW
|
|
|
Current Distortion Rate
|
<1%(Resistance load)
|
|
Basic Parameter
|
Rated Grid Voltage
|
380AC
|
|
|
Rated Grid Frequency
|
50Hz
|
|
|
Ddjustable Power Factor Range
|
(-1)~1
|
|
|
Grid Type
|
Low voltage side
|
|
|
Battery Cabinet Size(W*D*H)
|
1325x1306x2315mm
|
|
|
Battery Cabinet Weight
|
≈2500KG
|
|
|
Max System Efficiency
|
≥90%
|
|
|
Charge-Discharge Ratio
|
0.5C
|
|
|
Cooling Type
|
Liquid Cooling System
|
|
|
PACK Protection Grade
|
IP67
|
|
|
Overall Protection Grade
|
IP54
|
|
|
Cycle Count
|
6000~8000 times
|
|
|
Operating Temperature Range
|
Charge:0~50℃,Discharge:-20~50℃
|
|
|
Relative Humidity
|
65%±20%RH
|
|
|
Cooling Input Power
|
8KW
|
|
|
Max Working Altitude
|
≤2000m
|
|
|
Noise
|
≤70dB
|
|
|
Communication Interface
|
RS485 Etherent
|
|
|
Charge-discharge Switching Time
|
<20ms
|
|
|
Fire Protection System
|
class B
|
|
|
anti-backflow
|
Support(opention)
|
|
|
on/off-grid
|
Support(opention)
|
|
|
