25kva 50kva 100kva 167kva Combined Single Phase Pad Mounted Electric Transformers

Name: 25kva 50kva 100kva 167kva Combined Single Phase Pad Mounted Electric Transformers
Brand: TSTY
SKU: S11
Price: 920.00 USD
Availability: InStock
Rating: 4.5 (133 reviews)

Brand Name:	TSTY
Model Number:	S11
Price:	$920.00 - $1,000.00/units
Packaging Details:	Wooden packing.

Detail Information

Product Description

Detail Information

Place of Origin:

Henan, China

Certification:

ISO9001

Use:

Power

Phase:

Three

Coil Structure:

TOROIDAL

Coil Number:

Product Name:

Three Phase Transformer

Type:

Oil-filled Transformer

Frequency:

50/60Hz

Material:

Copper / Aluminium

Standard:

IEC / GB

Transformer Type:

S11 Oil-immersed Transformer

Vector Group:

Dyn11 / Yyn0

Warranty:

2 Years

Package:

Wooden Case

Supply Ability:

30 Unit/Units per Day

Product Description

Products Description

Product Description:

The S13 type is developed by our company on the basis of S11 distribution transformers through the research and application of new materials and new processes, and the combination of independent innovation and technology introduction. Through the optimized and innovative design of the core and coil structure, the goal of reducing no-load loss and noise is achieved. Compared with the current national standard JB/T10088-2004, the noise level has dropped by an average of 20%.

Product Features:

1.The transformer core is laminated with imported cold-rolled silicon steel sheets, which greatly reduces the no-load loss and no-load current.

2.High and low voltage windings are made of oxygen-free copper, and low voltage windings adopt double-layer cylindrical structure. high voltage winding adopts multilayer cylindrical structure. 1000kVA and above can adopt foil winding. The product has strong short-circuit resistance.

3.The transformer connection group uses Dyn11 to reduce the impact of harmonics on the power grid and improve the quality of power supply. 4.The transformer is a fully sealed structure, which prolongs the service life

5.The measured noise value is lower than the standard.

Technical Parameter for S13 Transformer

_{Rated Capacity}

_(KVA）

_{Connection group label}

_{High voltage}

_(kv)

_{Tap range}

_(kv)

_{Low voltage}

_(kv)

_{No-load loss & current (%)}

_{Load loss}

_{Dy * Yy}

_{Short circuit resistance}

_（%）

Yyn0 or Dyn11

10 6.3

±5% ±2X2.5%or +3X2.5%-1X2.5%

0.4

40*2.8

360*340

4.0

70*2.5

525*500

80*2.3

630*600

100*2.0

910*870

110*1.9

1090*1040

130*1.9

1310*1250

100

150*1.8

1580*1500

125

170*1.7

1890*1800

160

200*1.6

2310*2200

200

240*1.5

2730*2600

250

290*1.4

3200*3050

315

340*1.4

3830*3650

400

410*1.3

4520*4300

500

480*1.2

5410*5150

4.5

630

570*1.1

6200*6200

800

700*1.0

7500*7500

1000

830*1.0

10300*10300

1250

970*0.9

12000*12000

1600

1170*0.8

14500*14500

2000

1510*0.8

17800*17800

2500

1780*0.7

20700*20700

5.0

3150

2100*0.7

24300*24300

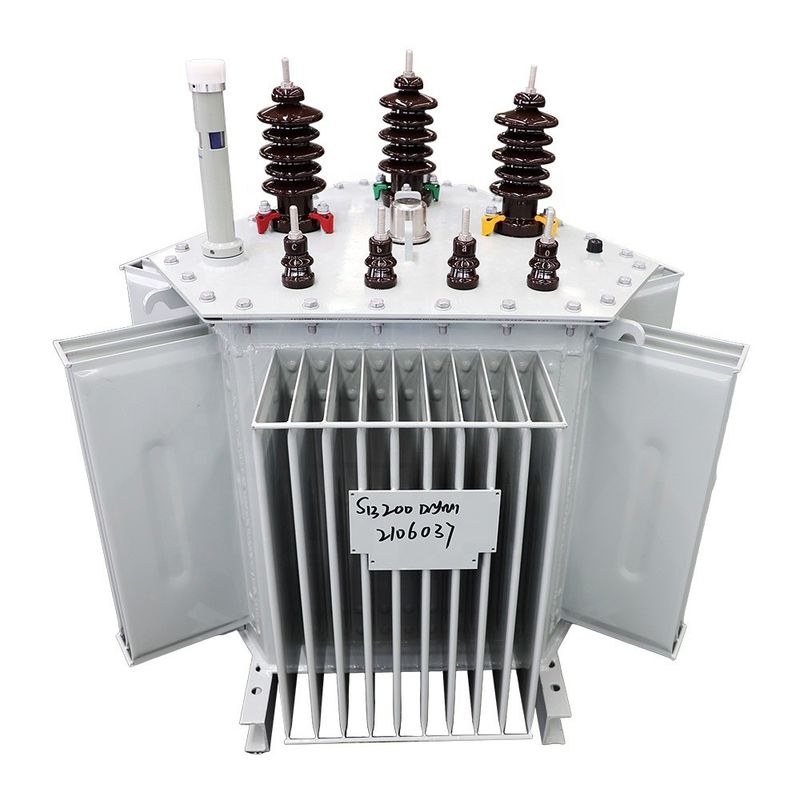

Oil type transformer structure diagram

Product Standard:

GB/T 1094 Power Transformer GB/T 15164 Oil-immersed Power Transformer Load Guide GB/T 6451 Three-phase Oil-immersed Power Transformer Technical Parameters and Requirements IEC/60076

Applicable Environment:

1.The altitude does not exceed 1000m. We can also customize according to your demand. 2.Maximum temperature: +40℃ 3.Average temperature of the hottest month: +30℃ 4.Minimum temperature: -10℃ (outdoor) 5.Maximum daily temperature difference: 25K 6.Ice thickness: 10mm 7.Monthly average maximum relative humidity (25℃): 90% 8.Installation location: outdoor

Product packaging

Transformer Case

Company Profile

TSTY Electric Co., Ltd. was established in 2011 and is an excellent and reliable transformer manufacturer in China. The company mainly develops and produces oil-immersed transformers, dry-type transformers, box-type substations and high and low voltage complete sets of equipment.

The equipment put into production and operation of the project advocates energy saving, intelligence, information and mechanization. The company has established the Henan Triangle Energy-saving Transformer Engineering Technology Research Center, with 71 utility model patents and 15 invention patents.

With years of accumulation in the transformer industry and strong technological innovation capabilities, it provides comprehensive solutions for the Chinese power industry. The company is a key procurement unit for large-scale national projects such as State Grid, State Railway Administration, Zhengzhou Coal Group, Pingmei Group and South-to-North Water Diversion.

Certifications

After sale service

1.Our company provides you with project design and process design, and designs and manufactures products according to your equipment purchase plan and specific needs. And train technical and operating personnel for you.

2.The newly purchased products are provided with online assistance for installation and debugging. The products are under the lifelong service system. If problems occur in normal use, we will provide solutions within one working day after receiving user's feedback. We will try our best to get the product up and running as soon as possible. And there are regular visits by professional technicians to ensure the long-term, safe and reliable use of our products.

3.We use quality authentic materials, process and manufacture in strict compliance with ISO9001:2000 international quality management to ensure the quality of excellence and the smooth installation!

Factory Display

Trade show

Customer Visiting

FAQ

Q：what's your major products? A: oil immersed transformer, dry type transformer, Transformer Substation, High and Low Voltage Switchgear Q: Can your product be customerized? A: Considering differences in voltage, frequency and other speciality of transformer product in different countries and regions,our product can be customerized according to your requirements. Q: When can I get the price? A:Usually we quote within 24 hours after we get your inquiry. Q: What about lead or shipping time? A: The lead time depends on the quantity you ordered, generally within 15 days upon receipt of advance payment. Q: What is the price of shipping? A: Depending upon the port of delivery, prices varies. Q: Do you offer guarantee for the products? A: Yes. We offer at least one years guarantee for all of our transformers.
