Good price online

products details

Home > Products >
Oil Immersed Transformer
>
10kV 100kVA 500 1000 1500 1600kVA 2000 2500kVA Pad Mounted Electrical Power Transformer
All Category

Oil Immersed Transformer

Dry Type Transformer

Transformer Substation

High And Low Voltage Switchgear

Single Phase Transformer

Liquid Cooled Energy Storage Cabinet

Top Sale
Contact Us
Mr. Wang
info@tstyelectric.com
15803834403
Contact Now
10kV 100kVA 500 1000 1500 1600kVA 2000 2500kVA Pad Mounted Electrical Power Transformer
  • name
  • name
  • name
  • name
  • name
  • name

10kV 100kVA 500 1000 1500 1600kVA 2000 2500kVA Pad Mounted Electrical Power Transformer

Brand Name: TSTY
Model Number: S9-M
Price: $920.00 - $999.00/units
Packaging Details: Wooden packing.
Detail Information
Product Description
Detail Information
Place of Origin:
Henan, China
Certification:
ISO9001
Use:
Power
Phase:
Three
Coil Structure:
TOROIDAL
Coil Number:
2
Product Name:
Potential Transformer
Type:
Oil-filled Transformer
Frequency:
50/60Hz
Material:
Copper / Aluminium
Standard:
IEC / GB
Transformer Type:
S9-M Oil-immersed Transformer
Vector Group:
Dyn11 / Yyn0
Warranty:
2 Years
Package:
Wooden Case
Port:
All Ports
Supply Ability:
30 Unit/Units per Day
Product Description
Products Description

10kv 100kva 500 1000 1500 1600kva 2000 2500kva pad mounted electrical power transformer price

The Small Electrical Transformers S9-M Oil Immersed Type introduces new international technology, adopts a fully oil-filled sealed type, without an oil conservator, and the transformer changes its oil body due to changes in temperature and load, which is completely adjusted by the flexibility of the transformer tank. The no-load loss of the transformer is 30% lower than that of the S7, and it has strong lightning resistance and short-circuit resistance. The energy-saving effect is more obvious, and the outer size of the transformer is reduced. It is a new type of energy-saving product in China.
10kV 100kVA 500 1000 1500 1600kVA 2000 2500kVA Pad Mounted Electrical Power Transformer 0
The Small Electrical Transformers S9-M Oil Immersed Type Features:
1.Low noise: compact design structure, application of new materials and new technology, reduce noise, no oil storage tank, lower height than similar products. There is no need to change oil during the normal life, which improves the safety and reliability of power grid operation.
2.When the transformer is packaged, the vacuum oil injection process is used to completely remove the moisture in the transformer tank. After sealing, the transformer does not come into contact with air, which effectively prevents oxygen and moisture from entering the transformer and causing degradation of insulation performance (insulating materials and oil aging), so there is no need to conduct oil sample tests regularly.
3.Reliable long-term service life: The fully sealed transformer case cover and the tank rim are bolted or welded to isolate the contact between oil and air. The insulation will not be damp, which greatly reduces the insulation aging speed and improves the service life.
4.Small size and beautiful appearance: S9-M series of transformer oil tanks use corrugated plate fins. When the oil temperature changes, the change in oil volume is adjusted and compensated by the elastic expansion and contraction of the corrugated sheets.The corrugated fuel tank is beautiful in appearance and small in size, with a small footprint.
5.No hanging core: The user does not need to check the hanging core before the fully sealed transformer is operated, which can save the cost of the hanging core inspection.
6.Maintenance-free: The fully sealed transformer does not require maintenance.
Product Details
10kV 100kVA 500 1000 1500 1600kVA 2000 2500kVA Pad Mounted Electrical Power Transformer 1
Product Paramenters
Rated capacity (KVA)
Voltage
Connection group tab
Loss
No-load current(%)
Resistant voltage
Length*Width
Height(H)
High-voltage(kv)
Extend connection
Low-voltage(kv)
No-load
Load
20
6
±5%
0.4
Yyn0
105
480
3
4
30
6.3
(±2×2.5%)
or
130
600
2.1
50
10
Dyn11
170
870
1
63
10.5
200
1040
1.9
80
11
250
1250
1.8
100
290
1500
1.6
125
340
1800
1.5
160
400
2200
1.4
200
480
2600
1.3
250
560
3050
1.2
315
670
3650
1.1
400
800
4300
1
500
960
5150
1
630
1200
6200
0.9
4.5
800
1400
7500
0.8
1000
1700
10300
0.7
1250
10kV 100kVA 500 1000 1500 1600kVA 2000 2500kVA Pad Mounted Electrical Power Transformer 2
The Small Electrical Transformers S9-M Oil Immersed Type Standard:
GB1094.1~2-1996 Power Transformer
GB1094.3.5-2003 Power Transformer
GB/T6451-2008 Technical Parameters and Requirements for Three-phase Oil-immersed Power Transformers

The Small Electrical Transformers S9-M Oil Immersed Type Applicable Environment:
1.High ambient temperature: +40℃
2.Low ambient temperature: -25℃
3.Altitude: <1000m
4.Monthly average relative humidity: 90% (20℃)
5.Installation location: Install in a place where there is no fire, explosion hazard, serious pollution, chemical corrosion and
severe vibration, indoors or outdoors.
10kV 100kVA 500 1000 1500 1600kVA 2000 2500kVA Pad Mounted Electrical Power Transformer 3
10kV 100kVA 500 1000 1500 1600kVA 2000 2500kVA Pad Mounted Electrical Power Transformer 4
Product Display
10kV 100kVA 500 1000 1500 1600kVA 2000 2500kVA Pad Mounted Electrical Power Transformer 5
Packaging＆Shipping
10kV 100kVA 500 1000 1500 1600kVA 2000 2500kVA Pad Mounted Electrical Power Transformer 6

After-sales service

1.Our company provides you with project design and process design, and designs and manufactures products according to your
equipment purchase plan and specific needs. And train technical and operating personnel for you.
2.The newly purchased products are provided with online assistance for installation and debugging. The products are under the
lifelong service system. If problems occur in normal use, we will provide solutions within one working day after receiving user's
feedback. We will try our best to get the product up and running as soon as possible. And there are regular visits by professional
technicians to ensure the long-term, safe and reliable use of our products.
3.We use quality authentic materials, process and manufacture in strict compliance with ISO9001:2000 international quality
management to ensure the quality of excellence and the smooth installation!
Our Factory
TSTY Electric Co., Ltd. was established in 2011 and is an excellent and reliable transformer manufacturer in China. The company mainly develops and produces oil-immersed transformers, dry-type transformers, box-type substations and high and low voltage complete sets of equipment.
The equipment put into production and operation of the project advocates energy saving, intelligence, information and
mechanization. The company has established the Henan Triangle Energy-saving Transformer Engineering Technology Research Center,with 71 utility model patents and 15 invention patents.
With years of accumulation in the transformer industry and strong technological innovation capabilities, it provides comprehensive solutions for the Chinese power industry. The company is a key procurement unit for large-scale national projects such as State Grid, State Railway Administration, Zhengzhou Coal Group, Pingmei Group and South-to-North Water Diversion.
10kV 100kVA 500 1000 1500 1600kVA 2000 2500kVA Pad Mounted Electrical Power Transformer 7
10kV 100kVA 500 1000 1500 1600kVA 2000 2500kVA Pad Mounted Electrical Power Transformer 8
Certifications
10kV 100kVA 500 1000 1500 1600kVA 2000 2500kVA Pad Mounted Electrical Power Transformer 9
Customer Visiting
10kV 100kVA 500 1000 1500 1600kVA 2000 2500kVA Pad Mounted Electrical Power Transformer 10
10kV 100kVA 500 1000 1500 1600kVA 2000 2500kVA Pad Mounted Electrical Power Transformer 11
10kV 100kVA 500 1000 1500 1600kVA 2000 2500kVA Pad Mounted Electrical Power Transformer 12
10kV 100kVA 500 1000 1500 1600kVA 2000 2500kVA Pad Mounted Electrical Power Transformer 13
Q: Who are we?
A:We are a big professional manufacturer of oil immersed transformer, dry type transformer, transformer substation,HV and LV switchgear, established in 2011 year .

Q: Why should you buy from us not from other suppliers?
A:As an enterprise specializing in transformer production for 12 years. ISO9001-2008, OHSAS 18001:2007, ISO4001:2004L
.CE,CCC,UL,CSA,TYPE TEST REPORT,etc certificates,Products match IEC, IEEE, ANSI, , GOST standard, we have high quality, fast delivery,guarantee after-sales service and factory price.

Q: How do transformers been shipped?
A: Transformers always been delivered by ship,train or truck for oversea,which with main active body in bulk and accessories in wooden cases.

Q: Can your product be customerized?
A: Considering differences in voltage, frequency and other speciality of transformer product in different countries and
regions,our product can be customerized according to your requirements.

Q: Do you offer guarantee for the products?
A: Yes. We offer at least two years guarantee for all of our transformers.

Q: Do you accept FAT(Factory Acceptance Test)?
A: Yes. It's available. We are responsible for each set transformer's testing.

Q: Do you assign engineer for after-sale service?
A: Yes. For our products,we all show after-sale guide installation adn question inquiry.
Good price online

Products Details

Home > Products >
Oil Immersed Transformer
>
10kV 100kVA 500 1000 1500 1600kVA 2000 2500kVA Pad Mounted Electrical Power Transformer
All Category

Oil Immersed Transformer

Dry Type Transformer

Transformer Substation

High And Low Voltage Switchgear

Single Phase Transformer

Liquid Cooled Energy Storage Cabinet

Top Sale
10kV 100kVA 500 1000 1500 1600kVA 2000 2500kVA Pad Mounted Electrical Power Transformer
  • name
  • name
  • name
  • name
  • name
  • name

10kV 100kVA 500 1000 1500 1600kVA 2000 2500kVA Pad Mounted Electrical Power Transformer

Brand Name: TSTY
Model Number: S9-M
Price: $920.00 - $999.00/units
Packaging Details: Wooden packing.
Detail Information
Product Description
Detail Information
Place of Origin:
Henan, China
Brand Name:
TSTY
Certification:
ISO9001
Model Number:
S9-M
Use:
Power
Phase:
Three
Coil Structure:
TOROIDAL
Coil Number:
2
Product Name:
Potential Transformer
Type:
Oil-filled Transformer
Frequency:
50/60Hz
Material:
Copper / Aluminium
Standard:
IEC / GB
Transformer Type:
S9-M Oil-immersed Transformer
Vector Group:
Dyn11 / Yyn0
Warranty:
2 Years
Package:
Wooden Case
Port:
All Ports
Price:
$920.00 - $999.00/units
Packaging Details:
Wooden packing.
Supply Ability:
30 Unit/Units per Day
Product Description
Products Description

10kv 100kva 500 1000 1500 1600kva 2000 2500kva pad mounted electrical power transformer price

The Small Electrical Transformers S9-M Oil Immersed Type introduces new international technology, adopts a fully oil-filled sealed type, without an oil conservator, and the transformer changes its oil body due to changes in temperature and load, which is completely adjusted by the flexibility of the transformer tank. The no-load loss of the transformer is 30% lower than that of the S7, and it has strong lightning resistance and short-circuit resistance. The energy-saving effect is more obvious, and the outer size of the transformer is reduced. It is a new type of energy-saving product in China.
10kV 100kVA 500 1000 1500 1600kVA 2000 2500kVA Pad Mounted Electrical Power Transformer 0
The Small Electrical Transformers S9-M Oil Immersed Type Features:
1.Low noise: compact design structure, application of new materials and new technology, reduce noise, no oil storage tank, lower height than similar products. There is no need to change oil during the normal life, which improves the safety and reliability of power grid operation.
2.When the transformer is packaged, the vacuum oil injection process is used to completely remove the moisture in the transformer tank. After sealing, the transformer does not come into contact with air, which effectively prevents oxygen and moisture from entering the transformer and causing degradation of insulation performance (insulating materials and oil aging), so there is no need to conduct oil sample tests regularly.
3.Reliable long-term service life: The fully sealed transformer case cover and the tank rim are bolted or welded to isolate the contact between oil and air. The insulation will not be damp, which greatly reduces the insulation aging speed and improves the service life.
4.Small size and beautiful appearance: S9-M series of transformer oil tanks use corrugated plate fins. When the oil temperature changes, the change in oil volume is adjusted and compensated by the elastic expansion and contraction of the corrugated sheets.The corrugated fuel tank is beautiful in appearance and small in size, with a small footprint.
5.No hanging core: The user does not need to check the hanging core before the fully sealed transformer is operated, which can save the cost of the hanging core inspection.
6.Maintenance-free: The fully sealed transformer does not require maintenance.
Product Details
10kV 100kVA 500 1000 1500 1600kVA 2000 2500kVA Pad Mounted Electrical Power Transformer 1
Product Paramenters
Rated capacity (KVA)
Voltage
Connection group tab
Loss
No-load current(%)
Resistant voltage
Length*Width
Height(H)
High-voltage(kv)
Extend connection
Low-voltage(kv)
No-load
Load
20
6
±5%
0.4
Yyn0
105
480
3
4
30
6.3
(±2×2.5%)
or
130
600
2.1
50
10
Dyn11
170
870
1
63
10.5
200
1040
1.9
80
11
250
1250
1.8
100
290
1500
1.6
125
340
1800
1.5
160
400
2200
1.4
200
480
2600
1.3
250
560
3050
1.2
315
670
3650
1.1
400
800
4300
1
500
960
5150
1
630
1200
6200
0.9
4.5
800
1400
7500
0.8
1000
1700
10300
0.7
1250
10kV 100kVA 500 1000 1500 1600kVA 2000 2500kVA Pad Mounted Electrical Power Transformer 2
The Small Electrical Transformers S9-M Oil Immersed Type Standard:
GB1094.1~2-1996 Power Transformer
GB1094.3.5-2003 Power Transformer
GB/T6451-2008 Technical Parameters and Requirements for Three-phase Oil-immersed Power Transformers

The Small Electrical Transformers S9-M Oil Immersed Type Applicable Environment:
1.High ambient temperature: +40℃
2.Low ambient temperature: -25℃
3.Altitude: <1000m
4.Monthly average relative humidity: 90% (20℃)
5.Installation location: Install in a place where there is no fire, explosion hazard, serious pollution, chemical corrosion and
severe vibration, indoors or outdoors.
10kV 100kVA 500 1000 1500 1600kVA 2000 2500kVA Pad Mounted Electrical Power Transformer 3
10kV 100kVA 500 1000 1500 1600kVA 2000 2500kVA Pad Mounted Electrical Power Transformer 4
Product Display
10kV 100kVA 500 1000 1500 1600kVA 2000 2500kVA Pad Mounted Electrical Power Transformer 5
Packaging＆Shipping
10kV 100kVA 500 1000 1500 1600kVA 2000 2500kVA Pad Mounted Electrical Power Transformer 6

After-sales service

1.Our company provides you with project design and process design, and designs and manufactures products according to your
equipment purchase plan and specific needs. And train technical and operating personnel for you.
2.The newly purchased products are provided with online assistance for installation and debugging. The products are under the
lifelong service system. If problems occur in normal use, we will provide solutions within one working day after receiving user's
feedback. We will try our best to get the product up and running as soon as possible. And there are regular visits by professional
technicians to ensure the long-term, safe and reliable use of our products.
3.We use quality authentic materials, process and manufacture in strict compliance with ISO9001:2000 international quality
management to ensure the quality of excellence and the smooth installation!

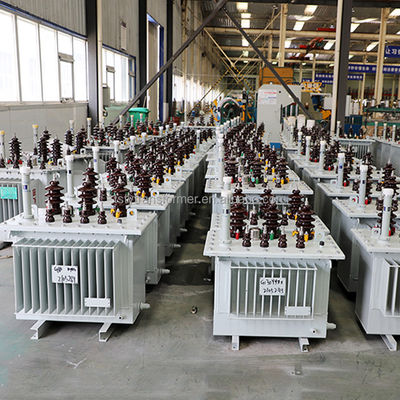

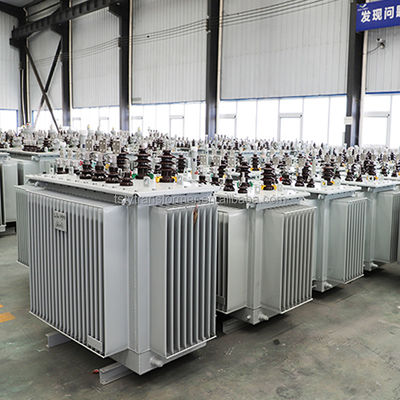

Our Factory
TSTY Electric Co., Ltd. was established in 2011 and is an excellent and reliable transformer manufacturer in China. The company mainly develops and produces oil-immersed transformers, dry-type transformers, box-type substations and high and low voltage complete sets of equipment.
The equipment put into production and operation of the project advocates energy saving, intelligence, information and
mechanization. The company has established the Henan Triangle Energy-saving Transformer Engineering Technology Research Center,with 71 utility model patents and 15 invention patents.
With years of accumulation in the transformer industry and strong technological innovation capabilities, it provides comprehensive solutions for the Chinese power industry. The company is a key procurement unit for large-scale national projects such as State Grid, State Railway Administration, Zhengzhou Coal Group, Pingmei Group and South-to-North Water Diversion.

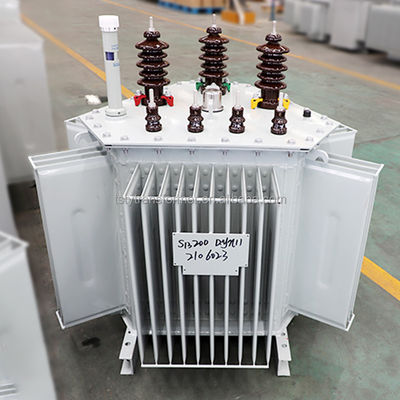

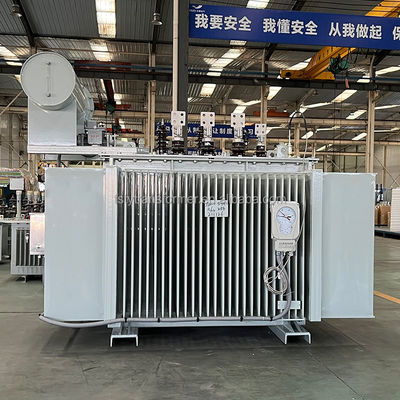

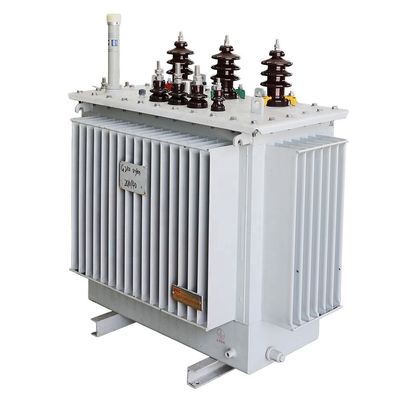

10kV 100kVA 500 1000 1500 1600kVA 2000 2500kVA Pad Mounted Electrical Power Transformer 7
10kV 100kVA 500 1000 1500 1600kVA 2000 2500kVA Pad Mounted Electrical Power Transformer 8
Certifications
10kV 100kVA 500 1000 1500 1600kVA 2000 2500kVA Pad Mounted Electrical Power Transformer 9
Customer Visiting
10kV 100kVA 500 1000 1500 1600kVA 2000 2500kVA Pad Mounted Electrical Power Transformer 10
10kV 100kVA 500 1000 1500 1600kVA 2000 2500kVA Pad Mounted Electrical Power Transformer 11
10kV 100kVA 500 1000 1500 1600kVA 2000 2500kVA Pad Mounted Electrical Power Transformer 12
10kV 100kVA 500 1000 1500 1600kVA 2000 2500kVA Pad Mounted Electrical Power Transformer 13
Q: Who are we?
A:We are a big professional manufacturer of oil immersed transformer, dry type transformer, transformer substation,HV and LV switchgear, established in 2011 year .

Q: Why should you buy from us not from other suppliers?
A:As an enterprise specializing in transformer production for 12 years. ISO9001-2008, OHSAS 18001:2007, ISO4001:2004L
.CE,CCC,UL,CSA,TYPE TEST REPORT,etc certificates,Products match IEC, IEEE, ANSI, , GOST standard, we have high quality, fast delivery,guarantee after-sales service and factory price.

Q: How do transformers been shipped?
A: Transformers always been delivered by ship,train or truck for oversea,which with main active body in bulk and accessories in wooden cases.

Q: Can your product be customerized?
A: Considering differences in voltage, frequency and other speciality of transformer product in different countries and
regions,our product can be customerized according to your requirements.

Q: Do you offer guarantee for the products?
A: Yes. We offer at least two years guarantee for all of our transformers.

Q: Do you accept FAT(Factory Acceptance Test)?
A: Yes. It's available. We are responsible for each set transformer's testing.

Q: Do you assign engineer for after-sale service?
A: Yes. For our products,we all show after-sale guide installation adn question inquiry.
Quick link
Home products About Us Contact Us
Quick Contact

Address

Room 1119, Floor 11, Buliding 2, No. 100,shangdu Road, Zhengzhou, Henan, China

Tel

86--15803834403

Our Newsletter
Subscribe to our newsletter for discounts and more.
Privacy Policy |  Sitemap  | China Good Quality Oil Immersed Transformer Supplier. Copyright © 2024 TSTY Electric Co., Ltd. . All Rights Reserved.
