1250kva Pad Mounted Box Substation Transformer 2500kva 6/0.4kv with 50/60Hz Frequency
  • name
  • name
  • name
  • name
  • name
  • name

1250kva Pad Mounted Box Substation Transformer 2500kva 6/0.4kv with 50/60Hz Frequency

Brand Name: TSTY
Model Number: European-style
Price: $5,500.00 - $5,999.00/units
Detail Information
Product Description
Detail Information
Place of Origin:
Henan, China
Certification:
ISO9001
Size:
1200
Product Name:
Power Substation
Type:
Box Substation
Frequency:
50/60Hz
Material:
Copper / Aluminium
Standard:
IEC / GB
Transformer Type:
YB Type Box Substation
Vector Group:
Dyn11 / Yyn0
Warranty:
2 Years
Package:
Wooden Case
Product Description
Products Description
European-style box-type substation is also called outdoor complete substation or combined substation. Because it has the
advantages of flexible combination, convenient transportation, migration, convenient installation, short construction period, low operating cost, small floor space, pollution-free, and maintenance-free, it has received extensive attention.
In rural power grid construction (reconstruction), it is widely used in the construction and transformation of 10-110kV small and medium-sized substations (distribution) substations, factories and mines, and mobile operations in urban and rural areas.
Because it is easy to penetrate into the load center, reduce the power supply radius, and improve the quality of the terminal
voltage, it is especially suitable for the transformation of rural power grids. It is known as the target mode of substation
construction in the 21st century.
1250kva Pad Mounted Box Substation Transformer 2500kva 6/0.4kv with 50/60Hz Frequency 0
Product Features:
1.Advanced technology, safe and reliable
The box body adopts domestic leading technology and craftsmanship. The outer shell is generally made of galvanized steel plate.
The frame adopts standard container materials and manufacturing techniques. It has good anti-corrosion performance and guarantees no corrosion for 20 years. The inner sealing plate adopts aluminum alloy buckle plate, and the interlayer adopts fireproof and thermal insulation materials, air-conditioning and dehumidification devices are installed in the cabinet, and the operation of the equipment is not affected by the natural climate environment and external pollution, and can ensure normal operation in the harsh environment of -40℃~+40℃.
The primary equipment in the box adopts domestic technology-leading equipment such as unit vacuum switchgear, dry-type transformer, vacuum circuit breaker (spring operating mechanism), etc. The product has no exposed live parts and is a fully insulated structure, which can completely achieve zero electric shock accidents. The whole station can realize oil-free operation with high safety.
2.High degree of automation
The whole station is intelligently designed. The protection system adopts the integrated automatic device of the substation and is installed in a decentralized manner. It can realize "four remotes", namely, remote measurement, remote signaling, remote control, and remote adjustment. Each unit has independent operation function and relay protection. Complete functions, remote setting of operating parameters, control of humidity and temperature in the box, to meet the requirements of unattended.
3.Factory prefabrication
All equipment is installed and qualified in the factory at one time, which shortens the design and manufacturing cycle. On-site installation only requires cabinet positioning, cable connection between cabinets, outgoing cable connection, protection setting verification, transmission test and other work that requires debugging. The entire substation takes about 5-8 days from installation to commissioning. Greatly shorten the construction period.
4.Flexible combination
Due to the compact structure of the European-style box change, each box constitutes an independent system, which makes the combination flexible and changeable.
5.Low investment and quick results
European-style box substation (35kV equipment outdoor layout, 10kV equipment box installation), compared with the same scale integrated substation (35kV equipment outdoor layout, 10kV equipment layout indoor high-voltage switch room and central control room), reduces investment by 40%-50%.
6.Cover small space.
Taking 4000kva single main transformer scale substation as an example, the construction of a conventional 35kv substation requires an area of about 3000m, and large-scale civil works are required;If a box-type substation is selected, the minimum area of the main transformer box and the switch box can be as small as 100m, and the total area including 35kv and other equipment is up to 300m, which is only 1/10 of the area of the substation of the same scale. It can be installed and put into production by making full use of the center of the street, the square and the corner of the factory, which is in line with the national land saving policy.
7.Beautiful appearance
The box shell adopts aluminum-zinc steel plate and container manufacturing technology. The appearance design is beautiful. Under the premise of ensuring the reliability of power supply, by choosing the shell color of the box-type substation, it is easy to coordinate with the surrounding environment. It is especially suitable for urban construction.
Product Details
1250kva Pad Mounted Box Substation Transformer 2500kva 6/0.4kv with 50/60Hz Frequency 1
Applicable Environment:
1.High ambient temperature: +40℃
2.Low ambient temperature: -25℃
3.Altitude: <1000m
4.Monthly average relative humidity: 90% (20℃)
5.Installation location: Install in a place where there is no fire, explosion hazard, serious pollution, chemical corrosion and
severe vibration, indoors or outdoors.
Product Paramenters
No.
Items
Unit
Value
1
 Rated voltage
Primary
kV
40.5
Secondary
12; 0.69
Subsidiary circuit
V
110; 220; 380
2
Rated current
High voltage circuit
A
400~1250
Low voltage circuit
630~3150
3
4
Rated frequency
Hz
50
Rated power
kVA
1250; 1600; 2000~20000
5
Rated insulation level
High voltage side
Power frequency
kV
95
impact
185
Low voltage side
Power frequency
42
impact
75
6
Rated short time withstand current
High voltage side
kA
20; 25; 31.5
Low voltage side
25; 31.5; 40
7
Rated peak withstand current
High voltage side
50; 63; 80
Low voltage side
63; 80; 100
8
Insulation level of transformer
Power frequency
kV
65
Impact
185
9
Insulation level of subsidiary circuit
2

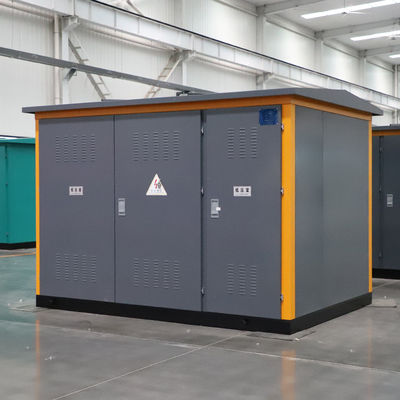

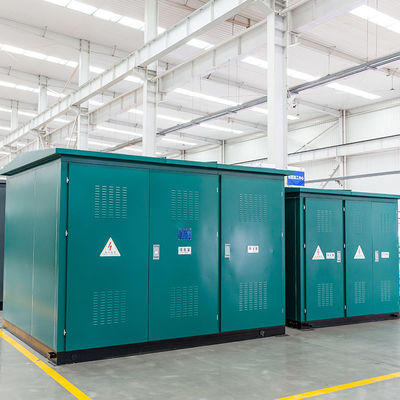

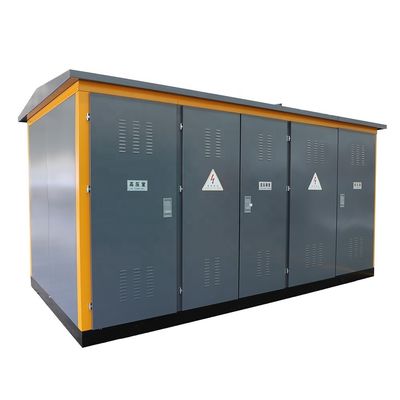

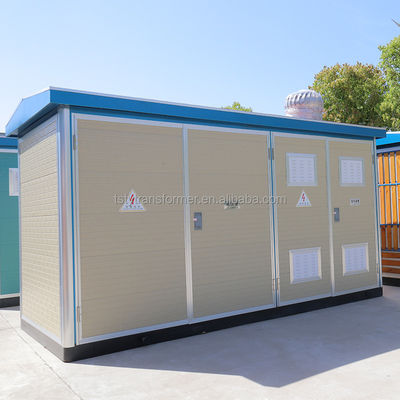

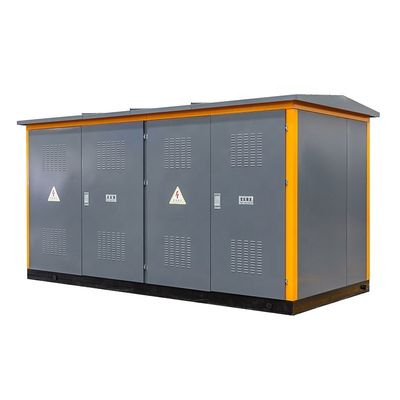

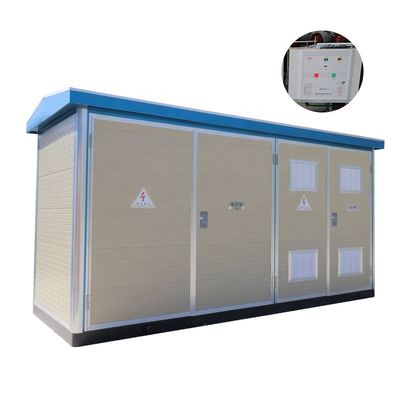

Product Display
1250kva Pad Mounted Box Substation Transformer 2500kva 6/0.4kv with 50/60Hz Frequency 2
1250kva Pad Mounted Box Substation Transformer 2500kva 6/0.4kv with 50/60Hz Frequency 3
1250kva Pad Mounted Box Substation Transformer 2500kva 6/0.4kv with 50/60Hz Frequency 4
Packaging＆Shipping
1250kva Pad Mounted Box Substation Transformer 2500kva 6/0.4kv with 50/60Hz Frequency 5

After-sales service

1.Our company provides you with project design and process design, and designs and manufactures products according to your equipment purchase plan and specific needs. And train technical and operating personnel for you.
2.The newly purchased products are provided with online assistance for installation and debugging. The products are under the lifelong service system. If problems occur in normal use, we will provide solutions within one working day after receiving user's feedback. We will try our best to get the product up and running as soon as possible. And there are regular visits by professional technicians to ensure the long-term, safe and reliable use of our products.
3.We use quality authentic materials, process and manufacture in strict compliance with ISO9001:2000 international quality management to ensure the quality of excellence and the smooth installation!
Our Factory
TSTY Electric Co., Ltd. was established in 2011 and is an excellent and reliable transformer manufacturer in China. The company mainly develops and produces oil-immersed transformers, dry-type transformers, box-type substations and high and low voltage complete sets of equipment.
The equipment put into production and operation of the project advocates energy saving, intelligence, information and
mechanization. The company has established the Henan Triangle Energy-saving Transformer Engineering Technology Research Center, with 71 utility model patents and 15 invention patents.
With years of accumulation in the transformer industry and strong technological innovation capabilities, it provides comprehensive solutions for the Chinese power industry. The company is a key procurement unit for large-scale national projects such as State Grid, State Railway Administration, Zhengzhou Coal Group, Pingmei Group and South-to-North Water Diversion.
1250kva Pad Mounted Box Substation Transformer 2500kva 6/0.4kv with 50/60Hz Frequency 6
Production Equipment
1250kva Pad Mounted Box Substation Transformer 2500kva 6/0.4kv with 50/60Hz Frequency 7
Certifications
1250kva Pad Mounted Box Substation Transformer 2500kva 6/0.4kv with 50/60Hz Frequency 8
Customer Visiting
1250kva Pad Mounted Box Substation Transformer 2500kva 6/0.4kv with 50/60Hz Frequency 9
1250kva Pad Mounted Box Substation Transformer 2500kva 6/0.4kv with 50/60Hz Frequency 10
1250kva Pad Mounted Box Substation Transformer 2500kva 6/0.4kv with 50/60Hz Frequency 11
1250kva Pad Mounted Box Substation Transformer 2500kva 6/0.4kv with 50/60Hz Frequency 12
Q:what's your major products?
A: oil immersed transformer, dry type transformer, Transformer Substation, High and Low Voltage Switchgear

Q: Can your product be customerized?
A: Considering differences in voltage, frequency and other speciality of transformer product in different countries and
regions,our product can be customerized according to your requirements.

Q: When can I get the price?
A:Usually we quote within 24 hours after we get your inquiry.

Q: What about lead or shipping time?
A: The lead time depends on the quantity you ordered, generally within 15 days upon receipt of advance payment.

Q: What is the price of shipping?
A: Depending upon the port of delivery, prices varies.

Q: Do you offer guarantee for the products?
A: Yes. We offer at least one years guarantee for all of our transformers.

Q: Your Advantage?
A: 15 years experience, Advanced production equipments, Stable quality, Fast delivery, Professional & good & Prompt service. Also some free parts can be provided for you.
