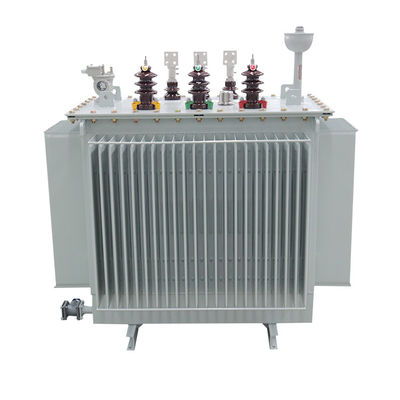

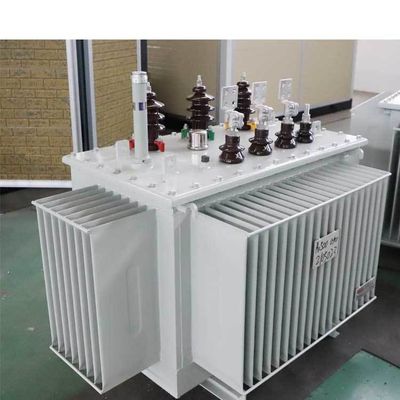

TOROIDAL Coil Structure 100kVA 13.8/34.5kV Transformer for Industrial Applications
  • name
  • name
  • name
  • name
  • name
  • name

TOROIDAL Coil Structure 100kVA 13.8/34.5kV Transformer for Industrial Applications

Brand Name: TSTY
Model Number: S13
Price: $940.00 - $1,100.00/units
Packaging Details: Wooden packing.
Detail Information
Product Description
Detail Information
Place of Origin:
Henan, China
Certification:
ISO9001
Use:
Power
Phase:
Three
Coil Structure:
TOROIDAL
Coil Number:
2
Product Name:
S13 Electric Oil Immersed Power Transformer
Type:
Oil-filled Transformer
Frequency:
50/60Hz
Material:
Copper / Aluminium
Standard:
IEC / GB
Transformer Type:
S13 Oil-immersed Transformer
Vector Group:
Dyn11 / Yyn0
Warranty:
1 Year
Package:
Wooden Case
Port:
Qingdao Port
Supply Ability:
30 Unit/Units per Day
Product Description
TOROIDAL Coil Structure 100kVA 13.8/34.5kV Transformer for Industrial Applications 0
Products Description

S13 Electric Oil Immersed Power Transformer

Product Description:

The S13 type is developed by our company on the basis of S11 distribution transformers through the research and application of new materials and new processes, and the combination of independent innovation and technology introduction. Through the optimized and innovative design of the core and coil structure, the goal of reducing no-load loss and noise is achieved. Compared with the current national standard JB/T10088-2004, the noise level has dropped by an average of 20%.

Product Features:

1.The transformer core is laminated with imported cold-rolled silicon steel sheets, which greatly reduces the no-load loss and no-load current. 2.High and low voltage windings are made of oxygen-free copper, and low voltage windings adopt double-layer cylindrical structure. high voltage winding adopts multilayer cylindrical structure. 1000kVA and above can adopt foil winding. The product has strong short-circuit resistance. 3.The transformer connection group uses Dyn11 to reduce the impact of harmonics on the power grid and improve the quality of power supply. 4.The transformer is a fully sealed structure, which prolongs the service life 5.The measured noise value is lower than the standard.
TOROIDAL Coil Structure 100kVA 13.8/34.5kV Transformer for Industrial Applications 1
TOROIDAL Coil Structure 100kVA 13.8/34.5kV Transformer for Industrial Applications 2

Product Standard:

GB/T 1094 Power Transformer GB/T 15164 Oil-immersed Power Transformer Load Guide GB/T 6451 Three-phase Oil-immersed Power Transformer Technical Parameters and Requirements IEC/60076
TOROIDAL Coil Structure 100kVA 13.8/34.5kV Transformer for Industrial Applications 3
Applicable Environment:
1.The altitude does not exceed 1000m. We can also customize according to your demand. 2.Maximum temperature: +40℃ 3.Average temperature of the hottest month: +30℃ 4.Minimum temperature: -10℃ (outdoor) 5.Maximum daily temperature difference: 25K 6.Ice thickness: 10mm 7.Monthly average maximum relative humidity (25℃): 90% 8.Installation location: outdoor
Product packaging
TOROIDAL Coil Structure 100kVA 13.8/34.5kV Transformer for Industrial Applications 4
Company Profile
TOROIDAL Coil Structure 100kVA 13.8/34.5kV Transformer for Industrial Applications 5
VR
TOROIDAL Coil Structure 100kVA 13.8/34.5kV Transformer for Industrial Applications 6
TSTY Electric Co., Ltd. was established in 2007 and is an excellent and reliable transformer manufacturer in China. The company mainly develops and produces oil-immersed transformers, dry-type transformers, box-type substations and high and low voltage complete sets of equipment. The equipment put into production and operation of the project advocates energy saving, intelligence, information and mechanization. The company has established the Henan Triangle Energy-saving Transformer Engineering Technology Research Center, with 71 utility model patents and 15 invention patents. With years of accumulation in the transformer industry and strong technological innovation capabilities, it provides comprehensive solutions for the Chinese power industry. The company is a key procurement unit for large-scale national projects such as State Grid, State Railway Administration, Zhengzhou Coal Group, Pingmei Group and South-to-North Water Diversion.
Certifications
TOROIDAL Coil Structure 100kVA 13.8/34.5kV Transformer for Industrial Applications 7
TOROIDAL Coil Structure 100kVA 13.8/34.5kV Transformer for Industrial Applications 8
1.Our company provides you with project design and process design, and designs and manufactures products according to your equipment purchase plan and specific needs. And train technical and operating personnel for you. 2.The newly purchased products are provided with online assistance for installation and debugging. The products are under the lifelong service system. If problems occur in normal use, we will provide solutions within one working day after receiving user's feedback. We will try our best to get the product up and running as soon as possible. And there are regular visits by professional technicians to ensure the long-term, safe and reliable use of our products. 3.We use quality authentic materials, process and manufacture in strict compliance with ISO9001:2000 international quality management to ensure the quality of excellence and the smooth installation!

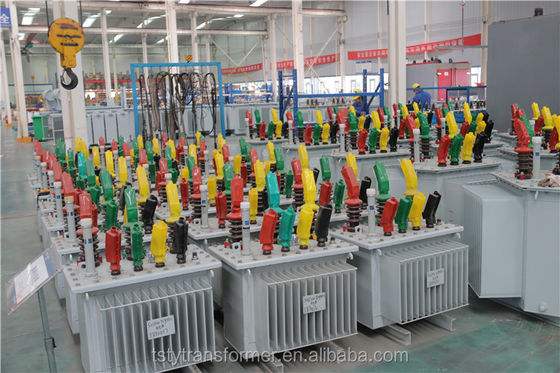

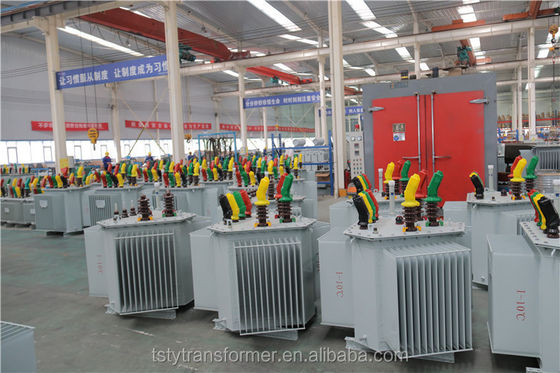

Factory Display
TOROIDAL Coil Structure 100kVA 13.8/34.5kV Transformer for Industrial Applications 9
TOROIDAL Coil Structure 100kVA 13.8/34.5kV Transformer for Industrial Applications 10
TOROIDAL Coil Structure 100kVA 13.8/34.5kV Transformer for Industrial Applications 11
TOROIDAL Coil Structure 100kVA 13.8/34.5kV Transformer for Industrial Applications 12
FAQ
TOROIDAL Coil Structure 100kVA 13.8/34.5kV Transformer for Industrial Applications 13
TOROIDAL Coil Structure 100kVA 13.8/34.5kV Transformer for Industrial Applications 14
