Long-term Service Life S9-M Oil-immersed Transformer 100Kva 160Kva for Power Plants

Name: Long-term Service Life S9-M Oil-immersed Transformer 100Kva 160Kva for Power Plants
Brand: TSTY
SKU: S9-M
Price: 999.00 USD
Availability: InStock
Rating: 4.9 (124 reviews)

Brand Name:	TSTY
Model Number:	S9-M
Price:	$999.00/units 1-1 units

Detail Information

Product Description

Detail Information

Place of Origin:

Henan, China

Certification:

ISO9001

Use:

Power

Phase:

Three

Coil Structure:

TOROIDAL

Coil Number:

Product Name:

Oil Type Transformer

Type:

Oil-filled Transformer

Frequency:

50/60Hz

Material:

Copper / Aluminium

Standard:

IEC / GB

Transformer Type:

S9-M Oil-immersed Transformer

Vector Group:

Dyn11 / Yyn0

Warranty:

2 Years

Package:

Wooden Case

Product Description

Products Description

Long-term Service Life Oil Filled Transformer 100Kva Transformer 160 Kva Oil Power Transformers

The S9-M type transformer introduces new international technology, adopts a fully oil-filled sealed type, without an oil conservator, and the transformer changes its oil body due to changes in temperature and load, which is completely adjusted by the flexibility of the transformer tank. The no-load loss of the transformer is 30% lower than that of the S7, and it has strong lightning resistance and short-circuit resistance. The energy-saving effect is more obvious, and the outer size of the transformer is reduced.

Product Features:

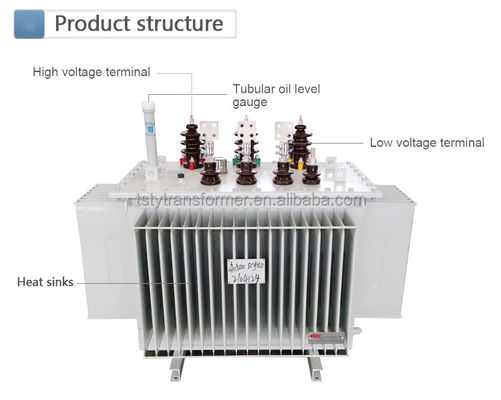

1.Low noise: compact design structure, application of new materials and new technology, reduce noise, no oil storage tank, lower height than similar products. 2.Reliable long-term service life: The fully sealed transformer case cover and the tank rim are bolted or welded to isolate the contact between oil and air. 3.Small size and beautiful appearance: S9-M series of transformer oil tanks use corrugated plate fins. When the oil temperature changes, the change in oil volume is adjusted and compensated by the elastic expansion and contraction of the corrugated sheets. The corrugated fuel tank is beautiful in appearance and small in size, with a small footprint. 4.Maintenance-free: The fully sealed transformer does not require maintenance.

Technical parameters of oil-immersed transformer

Drawing Design

Product Standard: GB/T 1094.1~2-1996 Power Transformer GB/T 1094.3.5-2003 Power Transformer GB/T6451-2008 Technical Parameters and Requirements for Three-phase Oil-immersed Power Transformers IEC60076

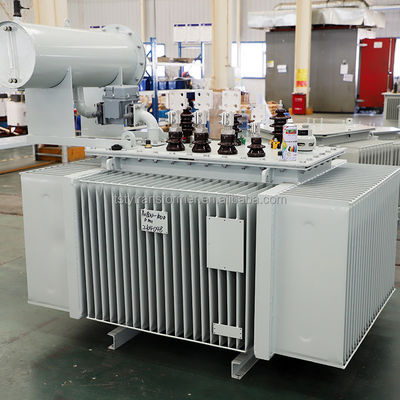

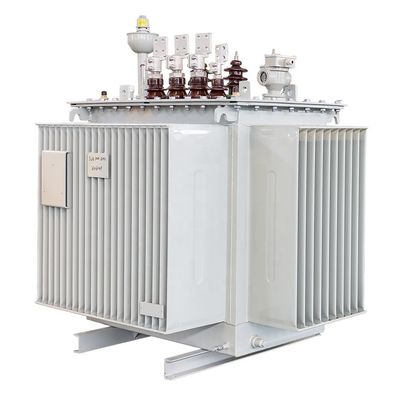

Product Display

Applicable Environment: 1.High ambient temperature: +40℃ 2.Low ambient temperature: -25℃ 3.Altitude: <1000m 4.Monthly average relative humidity: 90% (20℃) 5.Installation location: used in chemical plants, factories, remote places and harsh environment.

Customer Case

Product packaging

Company Profile

TSTY Electric Co., Ltd. was established in 2011 and is an excellent and reliable transformer manufacturer in China. The company mainly develops and produces oil-immersed transformers, dry-type transformers, box-type substations and high and low voltage complete sets of equipment. The equipment put into production and operation of the project advocates energy saving, intelligence, information and mechanization. The company has established the Henan Triangle Energy-saving Transformer Engineering Technology Research Center, with 71 utility model patents and 15 invention patents. With years of accumulation in the transformer industry and strong technological innovation capabilities, it provides comprehensive solutions for the Chinese power industry. The company is a key procurement unit for large-scale national projects such as State Grid, State Railway Administration, Zhengzhou Coal Group, Pingmei Group and South-to-North Water Diversion.

Certifications

After sale service

1.Our company provides you with project design and process design, and designs and manufactures products according to your equipment purchase plan and specific needs. And train technical and operating personnel for you. 2.The newly purchased products are provided with online assistance for installation and debugging. The products are under the lifelong service system. If problems occur in normal use, we will provide solutions within one working day after receiving user's feedback. We will try our best to get the product up and running as soon as possible. And there are regular visits by professional technicians to ensure the long-term, safe and reliable use of our products. 3.We use quality authentic materials, process and manufacture in strict compliance with ISO9001:2000 international quality management to ensure the quality of excellence and the smooth installation!

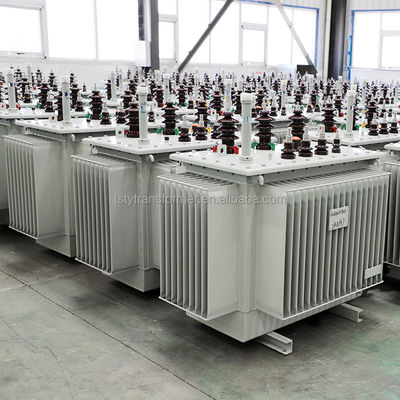

Factory Display

FAQ

Q: Who are we?
A:We are a big professional manufacturer of oil immersed transformer, dry type transformer, transformer substation,HV and LV switchgear, established in 2011 year .

Q: Why should you buy from us not from other suppliers?
A:As an enterprise specializing in transformer production for 16 years. ISO9001-2008, OHSAS 18001:2007, ISO4001:2004L .CE,CCC,UL,CSA,TYPE TEST REPORT,etc certificates,Products match IEC, IEEE, ANSI, , GOST standard, we have high quality, fast delivery,guarantee after-sales service and factory price.

Q: How do transformers been shipped?
A: Transformers always been delivered by ship,train or truck for oversea,which with main active body in bulk and accessories in wooden cases.

Q: Can your product be customerized?
A: Considering differences in voltage, frequency and other speciality of transformer product in different countries and
regions,our product can be customerized according to your requirements.

Q: Do you offer guarantee for the products?
A: Yes. We offer at least two years guarantee for all of our transformers.

Q: Do you accept FAT(Factory Acceptance Test)?
A: Yes. It’s available. We are responsible for each set transformer’s testing.

Q: Do you assign engineer for after-sale service?
A: Yes. For our products,we all show after-sale guide installation adn question inquiry.
