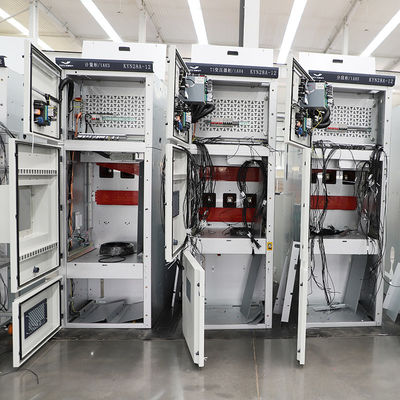

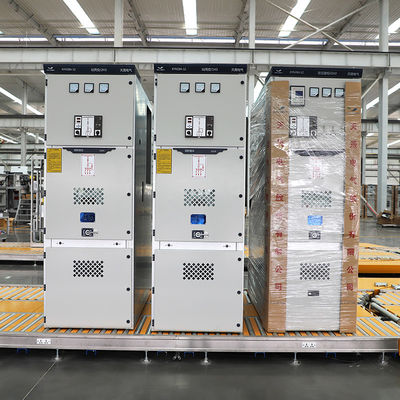

Energy Saving 11KV High Voltage Distribution Switchgear with Customized Configurations

Name: Energy Saving 11KV High Voltage Distribution Switchgear with Customized Configurations
Brand: TSTY
SKU: KYN28A-12
Price: 3 USD
Availability: InStock
Rating: 5 (108 reviews)

Brand Name:	TSTY
Model Number:	KYN28A-12
Price:	$3,000.00/units 1-1 units

Detail Information

Product Description

Detail Information

Place of Origin:

Henan, China

Certification:

ISO9001,Test report

Size:

1800

Product Name:

KYN28A-12 (GZS1-12) Indoor AC Metal Clad Intermediate Switchgear

Frequency:

50/60Hz

Protection Level:

IP30/IP32/IP40/IP65/IP66

Rated Voltage:

12kv

Color:

Customized

Feature:

Energy Saving

Warranty:

2 Years

Package:

Wooden Case

Product Description

Products Description

Switchboard Panel For Power Control Center electrical switchgear

HXGN-12 Series High Voltage Switchgear refer to the switchgears used in the ring power distribution network. The structure of the switchgear is simple, and the combination of load switch and fuse is commonly used. It has simple structure, small size and low price. It can improve the power supply parameters and performance, as well as the advantages of power supply safety.

Product Features:

1.HXGN 10KV AC modular SF6 ring network switchgear is a new generation of metal-clad and fully enclosed switchgear with SF6 load switch as the main switch. 2.The whole cabinet adopts air insulation, compact and simple structure, flexible operation, convenient installation, multiple interlocks, equipped with electric mechanism, PT, CT, UPS, etc., which can be used in the distribution network automation system.

Product Details

Product Standard:

GB3906-3.6KV~40.5KV AC Metal Enclosed Switchgear and Control Equipment GB16926-AC High Voltage Load Switch Fuse Combination Electrical Appliance

Application Channels:

Widely used in industrial and civil cable ring networks and power terminals, as the reception and distribution of electric energy, especially suitable for urban residential area power distribution, small secondary power distribution stations, small opening and closing stations, industrial and mining enterprises, shopping malls, airports, subways, power stations, hospitals, stadiums, railways, tunnels and other places.

Conditions of Use:

The altitude does not exceed 1000m; Ambient temperature: high temperature 45°C, low temperature -35°C; Daily temperature difference: no more than 25°C; The average daily relative humidity does not exceed 95%, and the monthly average relative humidity does not exceed 90%; Earthquake tolerance: earthquake intensity does not exceed 8°;

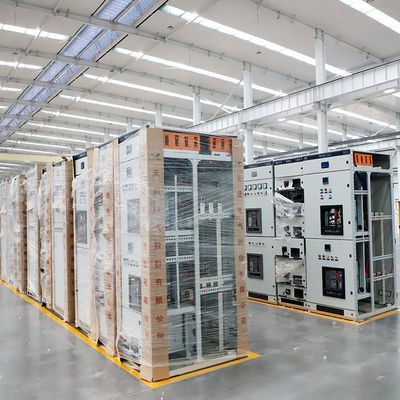

Product packaging

Company Profile

TSTY Electric Co., Ltd. was established in 2011 and is an excellent and reliable transformer manufacturer in China. The company mainly develops and produces oil-immersed transformers, dry-type transformers, box-type substations and high and low voltage complete sets of equipment. The equipment put into production and operation of the project advocates energy saving, intelligence, information and mechanization. The company has established the Henan Triangle Energy-saving Transformer Engineering Technology Research Center, with 71 utility model patents and 15 invention patents. With years of accumulation in the transformer industry and strong technological innovation capabilities, it provides comprehensive solutions for the Chinese power industry. The company is a key procurement unit for large-scale national projects such as State Grid, State Railway Administration, Zhengzhou Coal Group, Pingmei Group and South-to-North Water Diversion.

Certifications

1.Our company provides you with project design and process design, and designs and manufactures products according to your equipment purchase plan and specific needs. And train technical and operating personnel for you. 2.The newly purchased products are provided with online assistance for installation and debugging. The products are under the lifelong service system. If problems occur in normal use, we will provide solutions within one working day after receiving user's feedback. We will try our best to get the product up and running as soon as possible. And there are regular visits by professional technicians to ensure the long-term, safe and reliable use of our products. 3.We use quality authentic materials, process and manufacture in strict compliance with ISO9001:2000 international quality management to ensure the quality of excellence and the smooth installation!

Factory Display

Customer Visiting

Trade Show

Transformer Case

FAQ

Q：what's your major products?

A: oil immersed transformer, dry type transformer, Transformer Substation, High and Low Voltage Switchgear.

Q: Can your product be customerized?
A: Considering differences in voltage, frequency and other speciality of transformer product in different countries and
regions,our product can be customerized according to your requirements.

Q: When can I get the price?
A:Usually we quote within 24 hours after we get your inquiry.

Q: What about lead or shipping time?
A: The lead time depends on the quantity you ordered, generally within 15 days upon receipt of advance payment.

Q: What is the price of shipping?
A: Depending upon the port of delivery, prices varies.

Q: Do you offer guarantee for the products?
A: Yes. We offer at least one years guarantee for all of our transformers.

Q: Your Advantage?
A: 15 years experience, Advanced production equipments, Stable quality, Fast delivery, Professional & good & Prompt service. Also some free parts can be provided for you.
