| Brand Name: | TSTY |
| Model Number: | S9-M |
| Price: | $950.00 - $1,100.00/units |
| Packaging Details: | Wooden packing. |

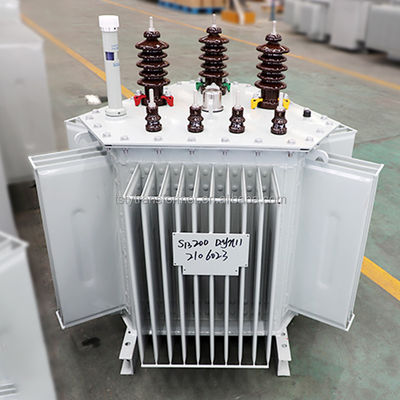

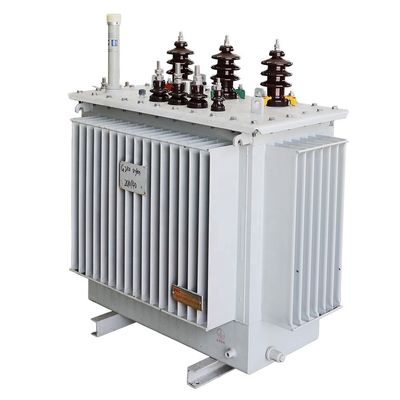

Factory direct explosion-proof power oil immersed transformer convert tank for measuring absolute pressure inductor transformer
The transformer adopts a fully oil-filled sealed structure, and the transformer changes its oil body due to changes in temperature and load, which is completely adjusted by the flexibility of the transformer tank. It has strong lightning resistance and short-circuit resistance. The energy-saving effect is more obvious, and the outer size of the transformer is reduced.
Product Features:
1.Low noise: compact design structure, application of new materials and new technology, reduce noise, no oil storage tank, lower height than similar products. There is no need to change oil during the normal life, which improves the safety and reliability of power grid operation.
2.Reliable long-term service life: The fully sealed transformer case cover and the tank rim are bolted or welded to isolate the contact between oil and air. The insulation will not be damp, which greatly reduces the insulation aging speed and improves the service life.
3.Small size and beautiful appearance.
4.No hanging core: The user does not need to check the hanging core before the fully sealed transformer is operated, which can save the cost of the hanging core inspection.
5.Maintenance-free: The fully sealed transformer does not require maintenance.
Technical Parameter:
| Rated capacity (KVA) | Voltage | Connection group tab | Loss | No-load current(%) | Resistant voltage | Weight | Measure(MM) | ||||||
| High-voltage(kv) | Extend connection | Low-voltage(kv) | No-load | Load | Empty weight | Oil weight | Total weight | Length*Width | Height(H) | ||||
| 20 | 6 | ±5% | 0.4 | Yyn0 | 105 | 480 | 3 | 4 | 135 | 75 | 280 | 1075*695 | 910 |
| 30 | 6.3 | (±2×2.5%) | or | 130 | 600 | 2.1 | 175 | 85 | 335 | 1105*700 | 950 | ||
| 50 | 10 | Dyn11 | 170 | 870 | 2 | 215 | 75 | 360 | 775*775 | 945 | |||
| 63 | 10.5 | 200 | 1040 | 1.9 | 275 | 105 | 470 | 1170* | 1065 | ||||
| 80 | 11 | 250 | 1250 | 1.8 | 280 | 90 | 455 | 820*820 | 980 | ||||
| 100 | 290 | 1500 | 1.6 | 315 | 95 | 500 | 820*820 | 1005 | |||||
| 125 | 340 | 1800 | 1.5 | 365 | 105 | 580 | 850*850 | 1045 | |||||
| 160 | 400 | 2200 | 1.4 | 425 | 110 | 660 | 1135*1135 | 1075 | |||||
| 200 | 480 | 2600 | 1.3 | 500 | 130 | 775 | 1190*1190 | 1120 | |||||
| 250 | 560 | 3050 | 1.2 | 595 | 150 | 915 | 1215*1215 | 1140 | |||||
| 315 | 670 | 3650 | 1.1 | 700 | 170 | 1075 | 1285*1285 | 1200 | |||||
| 400 | 800 | 4300 | 1 | 865 | 195 | 1280 | 1305*1305 | 1285 | |||||
| 500 | 960 | 5150 | 1 | 985 | 220 | 1490 | 1455*1455 | 1275 | |||||
| 630 | 1200 | 6200 | 0.9 | 4.5 | 1140 | 250 | 1735 | 1555*1555 | 1285 | ||||
| 800 | 1400 | 7500 | 0.8 | 1400 | 290 | 2110 | 1660*1660 | 1375 | |||||
| 1000 | 1700 | 10300 | 0.7 | 1560 | 400 | 2475 | 1685*1685 | 1550 | |||||
| 1250 | 1950 | 12000 | 0.6 | 1915 | 465 | 2985 | 1805*1805 | 1505 | |||||
| 1600 | 2400 | 14500 | 0.6 | 2330 | 530 | 3745 | 1840*1840 | 1690 | |||||
Model Implication:
Product Standard:
GB/T 1094.1~2-1996 Power Transformer
GB/T 1094.3.5-2003 Power Transformer
GB/T6451-2008 Technical Parameters and Requirements for Three-phase Oil-immersed Power Transformers
IEC60076
Applicable Environment:
1.High ambient temperature: +40℃
2.Low ambient temperature: -25℃
3.Altitude: <1000m. We can also customize according to your demand.
4.Monthly average relative humidity: 90% (20℃)
5.Installation location: Chemical plants, factories, remote places and other harsh environments.
1.Our company provides you with project design and process design, and designs and manufactures products according to your equipment purchase plan and specific needs. And train technical and operating personnel for you.
2.The newly purchased products are provided with online assistance for installation and debugging. The products are under the lifelong service system. If problems occur in normal use, we will provide solutions within one working day after receiving user's feedback. We will try our best to get the product up and running as soon as possible. And there are regular visits by professional technicians to ensure the long-term, safe and reliable use of our products.
3.We use quality authentic materials, process and manufacture in strict compliance with ISO9001:2000 international quality management to ensure the quality of excellence and the smooth installation!
TSTY Electric Co., Ltd. was established in 2011 and is an excellent and reliable transformer manufacturer in China. The company mainly develops and produces oil-immersed transformers, dry-type transformers, box-type substations and high and low voltage complete sets of equipment.
The equipment put into production and operation of the project advocates energy saving, intelligence, information and mechanization. The company has established the Henan Triangle Energy-saving Transformer Engineering Technology Research Center, with 71 utility model patents and 15 invention patents.
With years of accumulation in the transformer industry and strong technological innovation capabilities, it provides comprehensive solutions for the Chinese power industry. The company is a key procurement unit for large-scale national projects such as State Grid, State Railway Administration, Zhengzhou Coal Group, Pingmei Group and South-to-North Water Diversion.
Q: Who are we?
A:We are a big professional manufacturer of oil immersed transformer, dry type transformer, transformer substation,HV and LV switchgear, established in 2011 year .
Q: Why should you buy from us not from other suppliers?
A:As an enterprise specializing in transformer production for 12 years. ISO9001-2008, OHSAS 18001:2007, ISO4001:2004L .CE,CCC,UL,CSA,TYPE TEST REPORT,etc certificates,Products match IEC, IEEE, ANSI, , GOST standard, we have high quality, fast delivery,guarantee after-sales service and factory price.
Q: How do transformers been shipped?
A: Transformers always been delivered by ship,train or truck for oversea,which with main active body in bulk and accessories in wooden cases.
Q: Can your product be customerized?
A: Considering differences in voltage, frequency and other speciality of transformer product in different countries and
regions,our product can be customerized according to your requirements.
Q: Do you offer guarantee for the products?
A: Yes. We offer at least two years guarantee for all of our transformers.
Q: Do you accept FAT(Factory Acceptance Test)?
A: Yes. It's available. We are responsible for each set transformer's testing.
Q: Do you assign engineer for after-sale service?
A: Yes. For our products,we all show after-sale guide installation adn question inquiry.
|
|
