Good price online

products details

Home > Products >
Oil Immersed Transformer
>
Electric Oil Immersed Transformers 11kv 400v 2000 kva S11 S9 Vector group Dyn11 / Yyn0
All Category

Oil Immersed Transformer

Dry Type Transformer

Transformer Substation

High And Low Voltage Switchgear

Single Phase Transformer

Liquid Cooled Energy Storage Cabinet

Top Sale
Contact Us
Mr. Wang
info@tstyelectric.com
15803834403
Contact Now

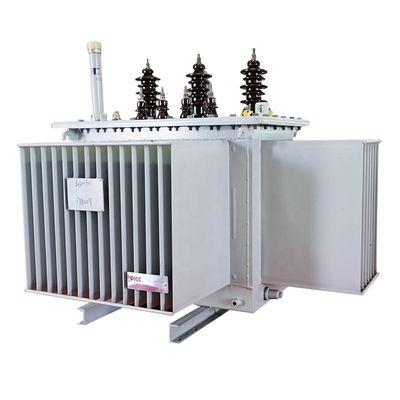

Electric Oil Immersed Transformers 11kv 400v 2000 kva S11 S9 Vector group Dyn11 / Yyn0
  • name
  • name
  • name
  • name
  • name
  • name

Electric Oil Immersed Transformers 11kv 400v 2000 kva S11 S9 Vector group Dyn11 / Yyn0

Brand Name: TSTY
Model Number: S11
Price: $980.00 - $1,100.00/units
Packaging Details: Wooden packing.
Detail Information
Product Description
Detail Information
Place of Origin:
Henan, China
Certification:
ISO9001
Use:
Power
Phase:
Three
Coil Structure:
TOROIDAL
Coil Number:
2
Product Name:
Three Phase Transformer
Type:
Oil-filled Transformer
Frequency:
50/60Hz
Material:
Copper / Aluminium
Standard:
IEC / GB
Transformer Type:
S11 Oil-immersed Transformer
Vector Group:
Dyn11 / Yyn0
Warranty:
2 Years
Package:
Wooden Case
Port:
Qingdao Port
Supply Ability:
30 Unit/Units per Day
Product Description
Products Description

Power Station Transformer 11kv 400v 2000 kva S11 S9 Small Large Electric Oil Immersed Transformers 50HZ 60HZ

* Oil Type Transformer Outdoor produced in accordance with Chinese national GB standards and the international IEC standards.
* It uses oil as the main insulation means of the transformer, and relies on oil as the cooling medium, such as oil-immersed natural cooling, oil-immersed air cooling, oil-immersed water cooling and forced oil circulation, etc.
* The main components: iron core, winding, fuel tank, oil pillow, breathing apparatus, explosion-proof tube (pressure release valve), radiator, insulating casing, tap switch, gas relay, thermometer, oil purifier, etc.
* Widely used in high-rise buildings, commercial centers, subways, airports, stations, industrial and mining enterprises, drilling platforms and oil production platforms; especially suitable for use in flammable, explosive and other harsh environments.
Electric Oil Immersed Transformers 11kv 400v 2000 kva S11 S9 Vector group Dyn11 / Yyn0 0
Oil Type Transformer Outdoor Features:
The S11 series fully sealed oil-immersed power transformer developed and produced by the company has the advantages of low loss,low noise and high efficiency, which can achieve good energy-saving effects and reduce pollution.
Compared with ordinary oil-immersed transformers, fully sealed transformers eliminate the oil conservator. The change of oil volume is automatically adjusted and compensated by the elasticity of the corrugated sheet of the corrugated oil tank. The transformer is isolated from the air to prevent and slow down the deterioration of oil and insulation aging so as to enhance operational reliability, and maintain normal operation without maintenance.

1.The transformer core is laminated with imported cold-rolled silicon steel sheets, which greatly reduces the no-load loss and no-load current. The core is bound to ensure the tightness of the core and reduce noise.
2.High and low voltage windings are made of oxygen-free copper, and low voltage windings of 500kVA and below adopt double-layer cylindrical structure. 630kVA and above adopt double helix or four helix structure, high voltage winding adopts multilayer cylindrical structure.
3.The transformer connection group uses Dyn11 to reduce the impact of harmonics on the power grid and improve the quality of power supply.
4.The transformer is a fully sealed structure, which prolongs the service life, does not require hanging cores and maintenance.
5.The measured noise value is lower than the standard. After this series of transformers have been transported normally, the relevant parts can be installed without core inspection, and they can be put into operation once the acceptance test is qualified.
Product Details
Electric Oil Immersed Transformers 11kv 400v 2000 kva S11 S9 Vector group Dyn11 / Yyn0 1
Oil Type Transformer Outdoor Standard:
GB 1094 Power Transformer
GB/T 15164 Oil-immersed Power Transformer Load Guide
GB/T 6451 Three-phase Oil-immersed Power Transformer Technical Parameters and Requirements
GB 2536 Transformer Oil
GB 311.1 Insulation Coordination of High-voltage Power Transmission and Transformation Equipment
GB 10237 Insulation Level of Power Transformer and Air Gap of External Insulation in Insulation Test
DL/T 572 Transformer Operation Regulations

Oil Type Transformer Outdoor Applicable Environment:
1.High ambient temperature: +40℃
2.Low ambient temperature: -25℃
3.Altitude: <1000m
4.Monthly average relative humidity: 90% (20℃)
5.Installation location: Install in a place where there is no fire, explosion hazard, serious pollution, chemical corrosion and
severe vibration, indoors or outdoors.
Product Paramenters
Electric Oil Immersed Transformers 11kv 400v 2000 kva S11 S9 Vector group Dyn11 / Yyn0 2
Electric Oil Immersed Transformers 11kv 400v 2000 kva S11 S9 Vector group Dyn11 / Yyn0 3
Electric Oil Immersed Transformers 11kv 400v 2000 kva S11 S9 Vector group Dyn11 / Yyn0 4
Electric Oil Immersed Transformers 11kv 400v 2000 kva S11 S9 Vector group Dyn11 / Yyn0 5
Product Display
Electric Oil Immersed Transformers 11kv 400v 2000 kva S11 S9 Vector group Dyn11 / Yyn0 6
Related Products
Electric Oil Immersed Transformers 11kv 400v 2000 kva S11 S9 Vector group Dyn11 / Yyn0 7
Packaging＆Shipping
Electric Oil Immersed Transformers 11kv 400v 2000 kva S11 S9 Vector group Dyn11 / Yyn0 8

After-sales service

1.Our company provides you with project design and process design, and designs and manufactures products according to your equipment purchase plan and specific needs. And train technical and operating personnel for you.
2.The newly purchased products are provided with online assistance for installation and debugging. The products are under the lifelong service system. If problems occur in normal use, we will provide solutions within one working day after receiving user's feedback. We will try our best to get the product up and running as soon as possible. And there are regular visits by professional technicians to ensure the long-term, safe and reliable use of our products.
3.We use quality authentic materials, process and manufacture in strict compliance with ISO9001:2000 international quality management to ensure the quality of excellence and the smooth installation!
Customer Case
Electric Oil Immersed Transformers 11kv 400v 2000 kva S11 S9 Vector group Dyn11 / Yyn0 9
Our Factory
TSTY Electric Co., Ltd. was established in 2011 and is an excellent and reliable transformer manufacturer in China. The company mainly develops and produces oil-immersed transformers, dry-type transformers, box-type substations and high and low voltage complete sets of equipment.
The equipment put into production and operation of the project advocates energy saving, intelligence, information and
mechanization. The company has established the Henan Triangle Energy-saving Transformer Engineering Technology Research Center, with 71 utility model patents and 15 invention patents.
With years of accumulation in the transformer industry and strong technological innovation capabilities, it provides comprehensive solutions for the Chinese power industry. The company is a key procurement unit for large-scale national projects such as State Grid, State Railway Administration, Zhengzhou Coal Group, Pingmei Group and South-to-North Water Diversion.
Electric Oil Immersed Transformers 11kv 400v 2000 kva S11 S9 Vector group Dyn11 / Yyn0 10
Electric Oil Immersed Transformers 11kv 400v 2000 kva S11 S9 Vector group Dyn11 / Yyn0 11
Electric Oil Immersed Transformers 11kv 400v 2000 kva S11 S9 Vector group Dyn11 / Yyn0 12
Electric Oil Immersed Transformers 11kv 400v 2000 kva S11 S9 Vector group Dyn11 / Yyn0 13
Electric Oil Immersed Transformers 11kv 400v 2000 kva S11 S9 Vector group Dyn11 / Yyn0 14
Electric Oil Immersed Transformers 11kv 400v 2000 kva S11 S9 Vector group Dyn11 / Yyn0 15
Electric Oil Immersed Transformers 11kv 400v 2000 kva S11 S9 Vector group Dyn11 / Yyn0 16
Q: Who are we?
A:We are a big professional manufacturer of oil immersed transformer, dry type transformer, transformer substation,HV and LV switchgear, established in 2011 year .

Q: Why should you buy from us not from other suppliers?
A:As an enterprise specializing in transformer production for 12 years. ISO9001-2008, OHSAS 18001:2007, ISO4001:2004L
.CE,CCC,UL,CSA,TYPE TEST REPORT,etc certificates,Products match IEC, IEEE, ANSI, , GOST standard, we have high quality, fast delivery,guarantee after-sales service and factory price.

Q: How do transformers been shipped?
A: Transformers always been delivered by ship,train or truck for oversea,which with main active body in bulk and accessories in wooden cases.

Q: Can your product be customerized?
A: Considering differences in voltage, frequency and other speciality of transformer product in different countries and
regions,our product can be customerized according to your requirements.

Q: Do you offer guarantee for the products?
A: Yes. We offer at least two years guarantee for all of our transformers.

Q: Do you accept FAT(Factory Acceptance Test)?
A: Yes. It's available. We are responsible for each set transformer's testing.

Q: Do you assign engineer for after-sale service?
A: Yes. For our products,we all show after-sale guide installation adn question inquiry.
