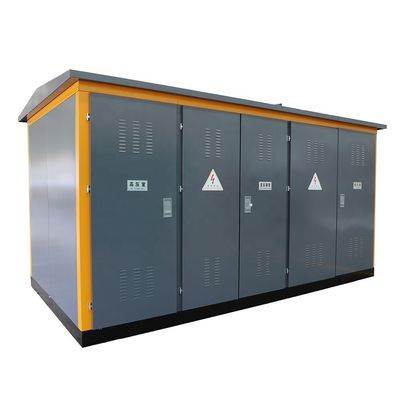

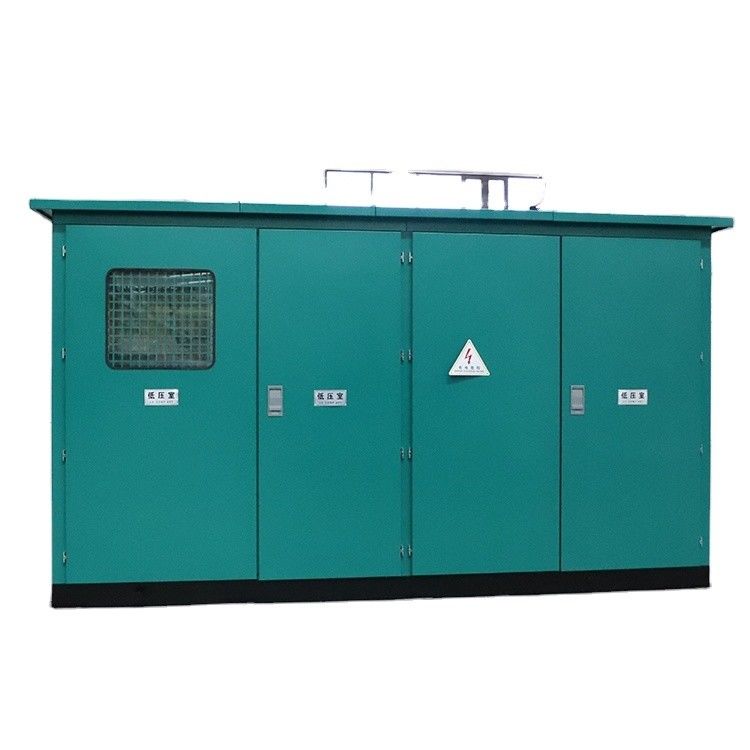

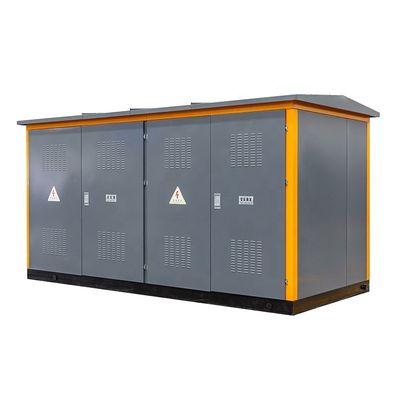

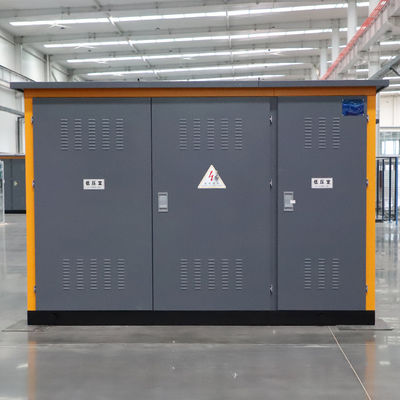

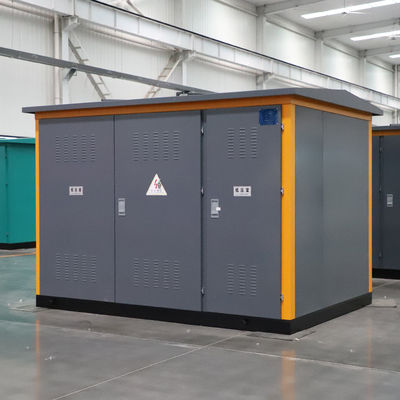

Copper/Aluminium 2500kva TOROIDAL Pad Mounted Distribution Transformer for Outlet
All Category

Oil Immersed Transformer

Dry Type Transformer

Transformer Substation

High And Low Voltage Switchgear

Single Phase Transformer

Liquid Cooled Energy Storage Cabinet

Top Sale
Contact Us
Mr. Wang
info@tstyelectric.com
15803834403
Contact Now
Copper/Aluminium 2500kva TOROIDAL Pad Mounted Distribution Transformer for Outlet
  • name
  • name
  • name
  • name
  • name
  • name

Copper/Aluminium 2500kva TOROIDAL Pad Mounted Distribution Transformer for Outlet

Brand Name: TSTY
Model Number: YB
Price: $4,500.00/units 1-1 units
Detail Information
Product Description
Detail Information
Place of Origin:
Henan, China
Certification:
ISO9001
Use:
Power
Phase:
Three
Coil Structure:
TOROIDAL
Coil Number:
Other
Product Name:
Three Phase Transformer
Frequency:
50/60Hz
Material:
Copper / Aluminium
Standard:
IEC / GB
Transformer Type:
YB Preinstalled Type Transformer Substation
Vector Group:
Dyn11 / Yyn0
Warranty:
2 Years
Package:
Wooden Case
Usage:
Power
Product Description
Products Description

Factory outlet intelligent transformador pad mounted distribution transformer price of 2500kva distribution transformer

Buried box-type substation is mainly composed of buried transformer and outdoor switchgear of advertising light box. The buried transformer is a new type of compact substation equipment composed of a transformer, a high-voltage load switch, a fuse, etc.,which is installed in a pit, does not occupy the surface space, and can be submerged in water for a period of time. The outdoor switchgear of advertising light box is a hybrid structure integrating billboards and outdoor switchgear, and is installed on the ground.
The inside of the box is an outdoor high and low voltage power distribution cabinet, and both sides are advertising light
boxes, which have excellent visual effects. The fully buried type is also called an underground substation. Its box has excellent anti-corrosion and compression resistance, and has absolute air tightness.
Copper/Aluminium 2500kva TOROIDAL Pad Mounted Distribution Transformer for Outlet 0
Copper/Aluminium 2500kva TOROIDAL Pad Mounted Distribution Transformer for Outlet 1
Copper/Aluminium 2500kva TOROIDAL Pad Mounted Distribution Transformer for Outlet 2

Product Features:

1.It can greatly save land, without land acquisition and civil construction, and save infrastructure investment.
2.There are no obstacles on the ground, which does not affect the environment, and does not affect people's vision and scenery.
3.The fully buried type installed on the lawn and green belt can also be designed with some decorative ornaments on the ground, such as sculptures, rockery, etc.; if the ground requires no obstacles (including ventilation ducts), you can choose a square type prefabricated substation.
4.The power distribution equipment of the fully buried prefabricated substation is set underground, which is safe and reliable.
5.The ground is not affected by transformer noise.
6.As the underground is relatively shady and cool, the temperature rise of the transformer is relatively stable during operation.
7.The internal space of the fully buried prefabricated substation is relatively spacious, and the maintenance operation will not cause interference on the ground, and will not interfere with the surrounding environment.
Copper/Aluminium 2500kva TOROIDAL Pad Mounted Distribution Transformer for Outlet 3
Copper/Aluminium 2500kva TOROIDAL Pad Mounted Distribution Transformer for Outlet 4
Copper/Aluminium 2500kva TOROIDAL Pad Mounted Distribution Transformer for Outlet 5
Transformer:
S series of oil immersed transformer.

Product Standard:
1.GB10941.2-1996 "Power Transformer"
2.GB109435-2003 "Power Transformer"
3.GB/T6451-1999 "Three-phase Oil-immersed Transformer Technical Parameters and Requirements"
4.GB/T15164-1994 "Guidelines for the Load of Oil-immersed Power Transformers"
5.JB/T10544-2006 "Underground Transformer"
6.GB/T15164-1994 "Guidelines for the Load of Oil-immersed Power Transformers"
7.JB/T10544-2006 "Underground Transformer" B Insulation Level
L175AC35/AC59 Protection Class: IP68
Product Paramenters
Rated voltage
HV: 6/10kV, LV: 0.4kV
Capacity range
30, 50, 63, 80, 100, 125, 160, 200, 250, 315, 400, 500, 630, 800, 1000, 1250, 1600, 2000kVA
Frequency
50Hz
Phase
Single-phase and 3-phase
Vector group
Dyn11, Yyn0
Impedance voltage
According to national standards operation environment
The cellar loss
Reaching national standards operation environment
Enclosure protection level
IP68
Noise level
No more than 55dB
Rated CapacityKVA
No-load LossW
On-load Loss
No-load Current %
Short Circuit Impedance %
Rated CapacityKVA
No-load LossW
On-load Loss
No-load Current %
Short-circuit Impedance %
30
91
600
0.63
4
400
560
4300
0.3
4  4.5  5.5
50
119
870
0.6
500
672
5100
0.3
63
140
1040
0.57
630
810
6200
0.27
80
168
1250
0.54
800
980
7500
0.24
100
203
1500
0.48
1000
1150
10300
0.21
125
238
1800
0.45
1250
1360
12000
0.18
160
280
2200
0.42
1600
1640
14500
0.18
200
336
2600
0.39
2000
1960
17820
0.3
250
392
3050
0.36
2500
2310
20700
0.25
315
469
3650
0.33
Flow Of Production
Copper/Aluminium 2500kva TOROIDAL Pad Mounted Distribution Transformer for Outlet 6
Packaging＆Shipping
Copper/Aluminium 2500kva TOROIDAL Pad Mounted Distribution Transformer for Outlet 7

After-Sales Service

1.Our company provides you with project design and process design, and designs and manufactures products according to your equipment purchase plan and specific needs. And train technical and operating personnel for you.
2.The newly purchased products are provided with online assistance for installation and debugging. The products are under the lifelong service system. If problems occur in normal use, we will provide solutions within one working day after receiving user's feedback. We will try our best to get the product up and running as soon as possible. And there are regular visits by professional technicians to ensure the long-term, safe and reliable use of our products.
3.We use quality authentic materials, process and manufacture in strict compliance with ISO9001:2000 international quality management to ensure the quality of excellence and the smooth installation!
Company Profile
TSTY Electric Co., Ltd. was established in 2007 and is an excellent and reliable transformer manufacturer in China. The company mainly develops and produces oil-immersed transformers, dry-type transformers, box-type substations and high and low voltage complete sets of equipment.
The equipment put into production and operation of the project advocates energy saving, intelligence, information and
mechanization. The company has established the Henan Triangle Energy-saving Transformer Engineering Technology Research Center, with 71 utility model patents and 15 invention patents.
With years of accumulation in the transformer industry and strong technological innovation capabilities, it provides comprehensive solutions for the Chinese power industry. The company is a key procurement unit for large-scale national projects such as State Grid, State Railway Administration, Zhengzhou Coal Group, Pingmei Group and South-to-North Water Diversion.
Copper/Aluminium 2500kva TOROIDAL Pad Mounted Distribution Transformer for Outlet 8
Copper/Aluminium 2500kva TOROIDAL Pad Mounted Distribution Transformer for Outlet 9
Certifications
Copper/Aluminium 2500kva TOROIDAL Pad Mounted Distribution Transformer for Outlet 10
Trade show
Copper/Aluminium 2500kva TOROIDAL Pad Mounted Distribution Transformer for Outlet 11
Copper/Aluminium 2500kva TOROIDAL Pad Mounted Distribution Transformer for Outlet 12
Copper/Aluminium 2500kva TOROIDAL Pad Mounted Distribution Transformer for Outlet 13
Transformer Case
Copper/Aluminium 2500kva TOROIDAL Pad Mounted Distribution Transformer for Outlet 14
