Less Space and Low Installation Cost CRT Transformer with Enclosure 33000v 415v 75 kva

Name: Less Space and Low Installation Cost CRT Transformer with Enclosure 33000v 415v 75 kva
Brand: TSTY
SKU: SC(B)10
Price: 1 USD
Availability: InStock
Rating: 4.9 (175 reviews)

Brand Name:	TSTY
Model Number:	SC(B)10
Price:	$1,100.00/units 1-1 units

Detail Information

Product Description

Detail Information

Place of Origin:

Henan, China

Certification:

ISO9001

Use:

Power

Phase:

Three

Coil Structure:

TOROIDAL

Coil Number:

Product Name:

Dry Type Power Transformer SC(B)10 11KV

Type:

Dry Type Transformer

Frequency:

50/60Hz

Material:

Copper / Aluminium

Standard:

IEC / GB

Advantage:

Small Size, Light Weight, Less Space And Low Installation Cost

Vector Group:

Dyn11 / Yyn0

Warranty:

2 Years

Package:

Wooden Case

Product Description

Products Description

SCB series dry type transformers refer to transformers in which the core and windings are not immersed in insulating oil. The cooling methods are divided into natural air cooling (AN) and forced air cooling (AF). When natural air cooling, the transformer can run continuously for a long time under the rated capacity. When forced air cooling, the output capacity of the transformer can be increased by 50% in short time. It is suitable for intermittent overload operation or emergency accident overload operation; due to the large increase in load loss and impedance voltage during overload, it is in an uneconomic operation state, so it should not be kept in continuous overload operation for a long time.

Dry Type Power Transformer is one of the important equipment in the power supply and distribution system of industrial and mining enterprises and civil buildings.

Dry Type Power Transformer Application:
Especially suitable for important places such as urban power grids, high-rise buildings, business centers, theaters, hospitals,hotels, tunnels, subways, underground power stations, stations, docks, airports, combined substations, etc.

Product Details

Dry Type Power Transformer Features:
Since epoxy resin is a non-flammable, flame-retardant, self-extinguishing solid insulating material, safe and clean, epoxy resin cast dry-type transformers are oil-free, non-flammable, and have low operating loss, strong short-circuit resistance, less maintenance work, high working efficiency, small volume and low noise. It is often used in places with high performance requirements such as fire prevention and explosion protection

Dry type transformer characteristics:
1.It is safe, fireproof, pollution-free, and can be directly operated in the load center;
2.High mechanical strength, strong short-circuit resistance, small partial discharge, good thermal stability, high reliability and long service life;
3.Low loss, low noise, obvious energy saving effect, maintenance-free;
4.Good heat dissipation performance, and capacity operation can be increased in short time when forced air cooling;
5.Good moisture resistance;
6.Dry-type transformers can be equipped with a complete temperature detection and protection system. Using intelligent signal temperature control system, it can automatically detect and display the respective operating temperatures of the three-phase windings, can automatically start and stop the fan, and have functions such as alarms and trips. IS485 communication interface can be installed to realize wireless detection and intelligent management.
7.Small size, light weight, less space and low installation cost.

Manufacturing Technique

Model	Rated capacity (KVA)	Connection symbol	Voltage combination (KV)					No-load loss (W)	Load loss (W)	No-load current (%)	Short circuit impedance (%)
						High-voltage	Tapping range					Low-voltage
						High-voltage	Tapping range					Low-voltage
SC(B)10-30	30	Yyn0	11	±5%	0.4	190	710	2.4	4
SC(B)10-50	50	or	10.5	±2×2.5%			270	1000		2.4
SC(B)10-80	80	Dyn11	10				370	1380		1.8
SC(B)10-100	100		6.3				400	1570		1.8
SC(B)10-125	125		6				470	1850		1.6
SC(B)10-160	160						550	2130		1.6
SC(B)10-200	200						630	2530		1.4
SC(B)10-250	250						720	2760		1.4
SC(B)10-315	315						880	3470		1.2
SC(B)10-400	400						980	3990		1.2
SC(B)10-500	500						1160	4880		1.2
SC(B)10-630	630				0.4	1350	5880	1
SC(B)10-630	630						1300	5960	1	6
SC(B)10-800	800						1520	6960	1
SC(B)10-1000	1000						1770	8130	1
SC(B)10-1250	1250						2090	9690	1
SC(B)10-1600	1600						2450	11730	1
SC(B)10-2000	2000						3050	14450	0.8
SC(B)10-2500	2500						3600	17170	0.8
SC(B)10-1600	1600						2450	12900	1	8
SC(B)10-2000	2000						3050	15890	0.8
SC(B)10-2500	2500						3600	18890	0.8

Dry Type Power Transformer Standard:
IEC60076, GB/T1094.11, GB/T17211.

Dry Type Power Transformer Applicable Environment:
1.0-40 (℃), relative humidity <70%;
2.Altitude: no more than 2500 meters;
3.Avoid rain, humidity, high temperature, high heat or direct sunlight.
4.Prevent working in places where there are more corrosive liquids, or gases, dust, conductive fibers or metal fines;
5.Prevent working in vibration or electromagnetic interference places;
6.Avoid long-term storage and transportation upside down, and avoid strong impact.

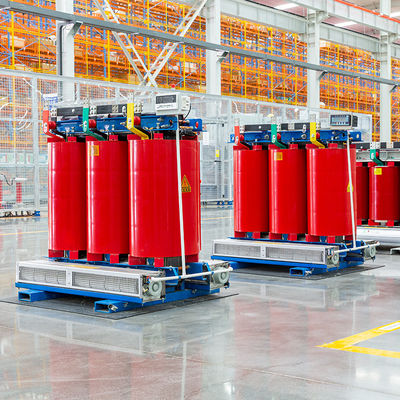

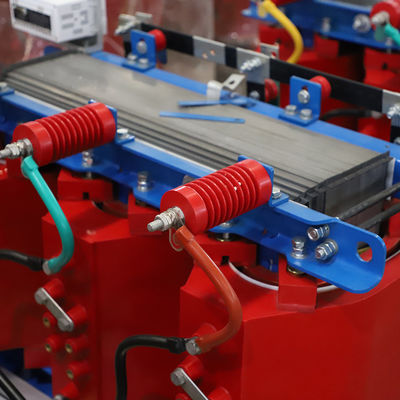

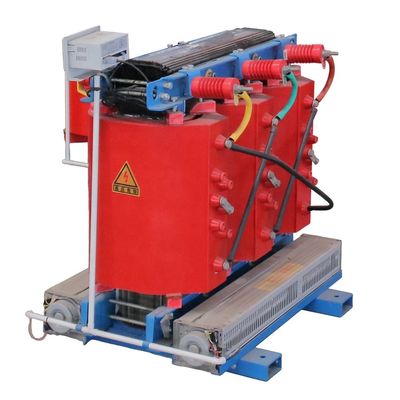

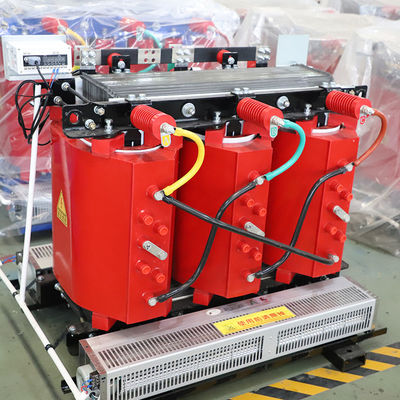

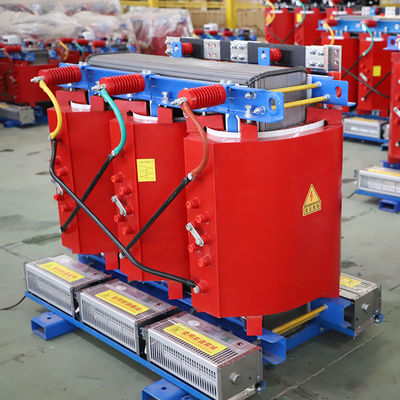

Product Display

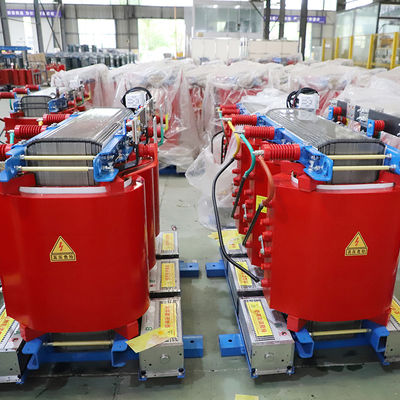

Our Factory

TSTY Electric Co., Ltd. was established in 2011 and is an excellent and reliable transformer manufacturer in China. The company mainly develops and produces oil-immersed transformers, dry-type transformers, box-type substations and high and low voltage complete sets of equipment.
The equipment put into production and operation of the project advocates energy saving, intelligence, information and
mechanization. The company has established the Henan Triangle Energy-saving Transformer Engineering Technology Research Center,with 71 utility model patents and 15 invention patents.With years of accumulation in the transformer industry and strong technological innovation capabilities, it provides comprehensive olutions for the Chinese power industry. The company is a key procurement unit for large-scale national projects such as State Grid, State Railway Administration, Zhengzhou Coal Group, Pingmei Group and South-to-North Water Diversion.

Certifications

Packaging＆Shipping

After sales service

1.Our company provides you with project design and process design, and designs and manufactures products according to your equipment purchase plan and specific needs. And train technical and operating personnel for you.
2.The newly purchased products are provided with online assistance for installation and debugging. The products are under the lifelong service system. If problems occur in normal use, we will provide solutions within one working day after receiving user's feedback. We will try our best to get the product up and running as soon as possible. And there are regular visits by professional technicians to ensure the long-term, safe and reliable use of our products.
3.We use quality authentic materials, process and manufacture in strict compliance with ISO9001:2000 international quality management to ensure the quality of excellence and the smooth installation!

Customer Visiting

Q: Are you a factory or a trade company?
A: We are factory, OEM/ODM available

Q: Our Advantage?
A: 15 years experience, Advanced production equipments, Stable quality, Fast delivery, Professional & good & Prompt service.Also some free parts can be provided for you

Q: How long is your delivery time?
A: it is depends on your quantity,generally within 15-20 days upon receipt of the advance payment

Q: What is your payment terms?
A : T/T, L/C,Visa Paypal for different circumstances.

Q: Do you have inspection procedure before shiping?
A: Yes,we do 100% QC inspection

Q: Do you offer guarantee for the products?
A: Yes. We offer at least one years warranty for all of our transformer

Q:AS we knew, when we make order, some suppliers used lower material insted of high quality material products and send to us, how can i trust you?
A: we suggest clients to test the material after receiving goods. We aim to do long term business, not one times.
