IEC / GB Standard Three Phase Power Substation Transformer for Performance and Efficiency
All Category

Oil Immersed Transformer

Dry Type Transformer

Transformer Substation

High And Low Voltage Switchgear

Single Phase Transformer

Liquid Cooled Energy Storage Cabinet

Top Sale
Contact Us
Mr. Wang
info@tstyelectric.com
15803834403
Contact Now

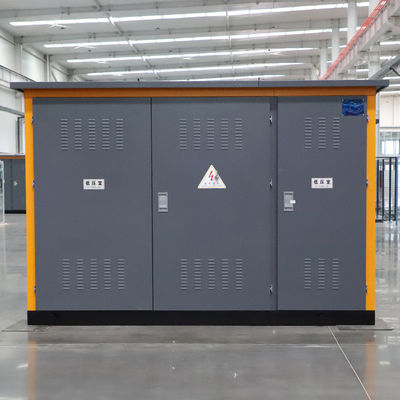

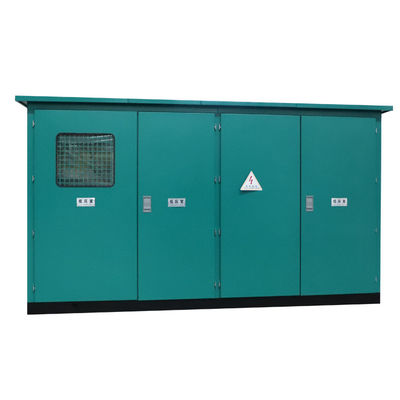

IEC / GB Standard Three Phase Power Substation Transformer for Performance and Efficiency
  • name
  • name
  • name
  • name
  • name
  • name

IEC / GB Standard Three Phase Power Substation Transformer for Performance and Efficiency

Brand Name: TSTY
Model Number: YBD
Price: $4,600.00 - $5,500.00/units
Detail Information
Product Description
Detail Information
Place of Origin:
Henan, China
Certification:
ISO9001
Use:
Power
Phase:
Three
Coil Structure:
Other
Coil Number:
Other
Product Name:
33kv Substation
Type:
YB Preinstalled
Frequency:
50/60Hz
Material:
Copper / Aluminium
Standard:
IEC / GB
Transformer Type:
YBD Preinstalled Type Transformer Substation
Vector Group:
Dyn11 / Yyn0
Warranty:
1 Year
Package:
Wooden Case
Product Description
IEC / GB Standard Three Phase Power Substation Transformer for Performance and Efficiency 0
Box-type substation is also called prefabricated substation. It combines high-voltage switchgear, distribution transformers and low-voltage power distribution devices into a single factory prefabricated indoor and outdoor compact power distribution equipment according to a certain wiring scheme, which organically combines functions such as transformer step-down and low-voltage power distribution. Installed in a moisture-proof, rust-proof, dust-proof, rat-proof, fire-proof, anti-theft, heat-insulation, fully-enclosed, and movable steel structure box. Box-type substations are divided into European-style box-type substations, American-type box-type substations, and underground box-type substations.
Products Description

YBD Buried Type Box Substation

Buried box-type substation is mainly composed of buried transformer and outdoor switchgear of advertising light box. The buried transformer is a new type of compact substation equipment composed of a transformer, a high-voltage load switch, a fuse, etc., which is installed in a pit, does not occupy the surface space, and can be submerged in water for a period of time. The outdoor switchgear of advertising light box is a hybrid structure integrating billboards and outdoor switchgear, and is installed on the ground.The inside of the box is an outdoor high and low voltage power distribution cabinet, and both sides are advertising light boxes, which have excellent visual effects. The fully buried type is also called an underground substation. Its box has excellent anti-corrosion and compression resistance, and has absolute air tightness.

Product Features:

1.It can greatly save land, without land acquisition and civil construction, and save infrastructure investment. 2.There are no obstacles on the ground, which does not affect the environment, and does not affect people's vision and scenery. 3.The fully buried type installed on the lawn and green belt can also be designed with some decorative ornaments on the ground, such as sculptures, rockery, etc.; if the ground requires no obstacles (including ventilation ducts), you can choose a square type prefabricated substation. 4.The power distribution equipment of the fully buried prefabricated substation is set underground, which is safe and reliable. 5.The ground is not affected by transformer noise. 6.As the underground is relatively shady and cool, the temperature rise of the transformer is relatively stable during operation. 7.The internal space of the fully buried prefabricated substation is relatively spacious, and the maintenance operation will not cause interference on the ground, and will not interfere with the surrounding environment.

Transformer: S series of oil immersed transformer.
Parameter Table
Rated voltage
HV: 6/10KV, LV: 0.4KV
Capacity range
30,50,63,80,100,125,160,200,250,315,400,500,630,800,1000,1250,1600, 2000KVA
Frequency
50Hz
Phase
Single-phase and 3-phase
Vector group
Dyn 11, Yyn0
Impedance voltage
According to national standard operation environment
The cellar loss
Reaching national standards  operation environment
Enclosure protection level
IP68
Noise level
≤5 5dB
Rated Capacity KVA
No-load Loss
W
On-load Loss (75°) W°
No-load Current %
Short Circuit Impedance %
Rated
Capacity
KVA
No-load Loss
W
On-load Loss (75°)W°
No-load Current %
Short-Circuit Impedance %
30
91
600
0.63






4
400
560
4300
0.30


4



4.5






5.5
50
119
870
0.60
500
672
5100
0.30
63
140
1040
0.57
630
810
6200
0.27
80
168
1250
0.54
800
980
7500
0.24
100
203
1500
0.48
1000
1150
10300
0.21
125
238
1800
0.45
1250
1360
12000
0.18
160
280
2200
0.42
1600
1640
14500
0.18
200
336
2600
0.39
2000
1960
17820
0.3
250
392
3050
0.36
2500
2310
20700
0.25
315
469
3650
0.33
IEC / GB Standard Three Phase Power Substation Transformer for Performance and Efficiency 1
IEC / GB Standard Three Phase Power Substation Transformer for Performance and Efficiency 2

Product Standard:

1.GB10941.2-1996 "Power Transformer" 2.GB109435-2003 "Power Transformer" 3.GB/T6451-1999 "Three-phase Oil-immersed Transformer Technical Parameters and Requirements" 4.GB/T15164-1994 "Guidelines for the Load of Oil-immersed Power Transformers" 5.JB/T10544-2006 "Underground Transformer" 6.GB/T15164-1994 "Guidelines for the Load of Oil-immersed Power Transformers" 7.JB/T10544-2006 "Underground Transformer" B Insulation Level L175AC35/AC59 Protection Class: IP68
