| Brand Name: | TSTY |
| Model Number: | S13-MRL |
| Price: | $980.00 - $1,100.00/units |

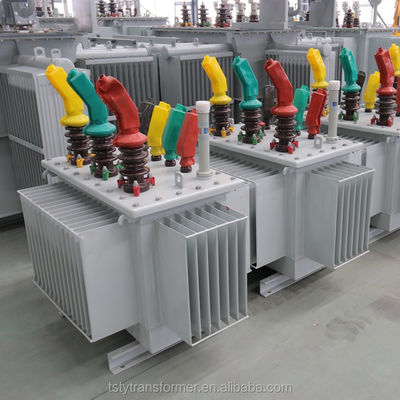

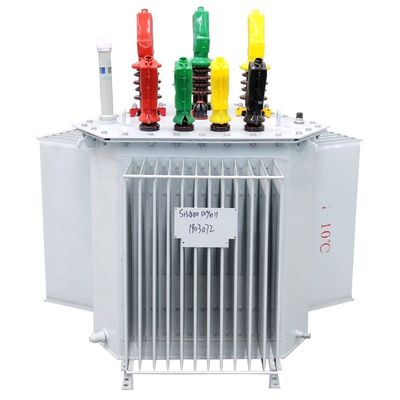

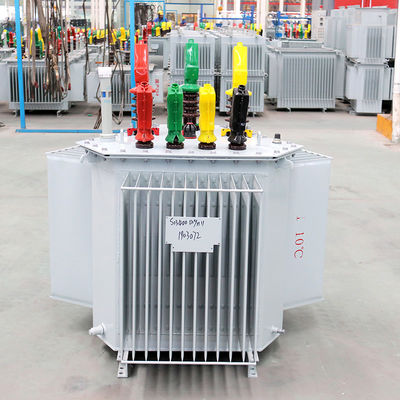

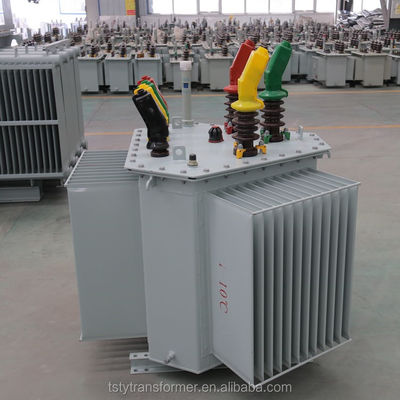

* The S13-MRL Series Three-dimensional Wound Core Power Transformer is an energy-saving power transformer. It is a distribution transformer with a triangular three-dimensional arrangement of iron cores assembled by three single-frame wound cores of the same geometric size, and the three-dimensional wound core as the magnetic circuit.
* The three-dimensional wound core transformer creatively reforms the laminated magnetic circuit structure and three-phase layout of traditional power transformers, and optimizes product performance. For example, the three-phase magnetic circuit is completely symmetrical, the power saving effect is significant, the noise is greatly reduced, heat dissipation and overload Stronger capacity, compact structure and small size.
S13-MRL Series Three-dimensional Wound Core Power Transformer Features:
1.Low loss
2.Low no-load current
3.Low operating noise
4.Strong short circuit resistance
The transformer body is in the shape of a three-dimensional triangular prism. The surrounding and center are equipped with pull screws, which are integrated with the upper and lower iron yoke insulation and laminated wood blocks, which can effectively resist the axial and radial mechanical stress during sudden short circuit.
S13-MRL Series Three-dimensional Wound Core Power Transformer Standard:
IEC60076, GB/T1094, GB/T6451.
S13-MRL Series Three-dimensional Wound Core Power Transformer Applicable Environment:
1. High ambient temperature: +40℃
2. Low ambient temperature: -25℃
3. Altitude: <1000m. We can also customize according to your demand beyond this range.
4. Monthly average relative humidity: 90% (25℃)
5. Installation location: chemical plants, factories, remote places and harsh environment.
S13-MRL Series Three-dimensional Wound Core Power Transformer Model Implication:
S13-MRL Series Three-dimensional Wound Core Power Transformer Technical Parameter:
| S13-M.RL Series Three-dimensional Wound Core Power Transformer | ||||||||||
| Model | Rated Capacity (KVA) | Connection Group Symbol | Voltage Combination | No-load Loss R(W) | Load Loss R(W) | No-load Current (%) | Impedance Voltage(%) | Total Weight (kg) | ||
| High Voltage(KV) | Tapping Range of High Voltage | Low Voltage (KV) | ||||||||
| S13-M.RL | 30 | Dyn11 Yzn11 Yyn0 | 6 6.3 10 10.5 11 | ±5% ±2x2.5% | 0.4 | 80 | 600 | 0.3 | 4 | 280 |
| S13-M.RL | 50 | 100 | 870 | 0.24 | 390 | |||||
| S13-M.RL | 63 | 110 | 1040 | 0.23 | 440 | |||||
| S13-M.RL | 80 | 130 | 1250 | 0.22 | 495 | |||||
| S13-M.RL | 100 | 150 | 1500 | 0.21 | 600 | |||||
| S13-M.RL | 125 | 170 | 1800 | 0.2 | 690 | |||||
| S13-M.RL | 160 | 200 | 2200 | 0.19 | 780 | |||||
| S13-M.RL | 200 | 240 | 2600 | 0.18 | 908 | |||||
| S13-M.RL | 250 | 290 | 3050 | 0.17 | 1043 | |||||
| S13-M.RL | 315 | 340 | 3650 | 0.16 | 1190 | |||||
| S13-M.RL | 400 | 410 | 4300 | 0.16 | 1430 | |||||
| S13-M.RL | 500 | 480 | 5150 | 0.16 | 1648 | |||||
| S13-M.RL | 630 | Yyn0 or Dyn11 | 570 | 6200 | 0.15 | 4.5 | 2027 | |||
| S13-M.RL | 800 | 700 | 7500 | 0.15 | 2316 | |||||
| S13-M.RL | 1000 | 830 | 10300 | 0.14 | 2600 | |||||
| S13-M.RL | 1250 | 970 | 12000 | 0.13 | 2890 | |||||
| S13-M.RL | 1600 | 1170 | 14500 | 0.12 | 3380 | |||||
| S13-M.RL | 2000 | 1360 | 14530 | 0.12 | 3600 | |||||
| S13-M.RL | 2500 | 1500 | 17270 | 0.11 | 3890 | |||||
* The data in the table is subject to change as required.
Low-voltage foil winding area:

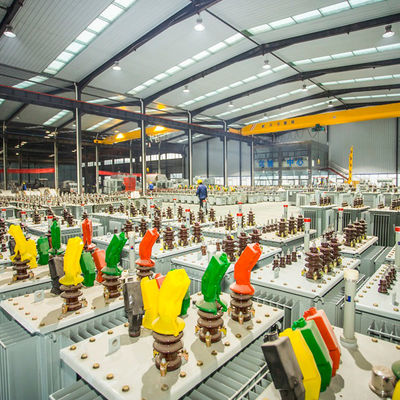

Case Storage Area:
Coil installation:
Assembly:
Testing:
1.Our company provides you with project design and process design, and designs and manufactures products according to your equipment purchase plan and specific needs. And train technical and operating personnel for you.
2.The newly purchased products are provided with online assistance for installation and debugging. The products are under the lifelong service system. If problems occur in normal use, we will provide solutions within one working day after receiving user's feedback. We will try our best to get the product up and running as soon as possible. And there are regular visits by professional technicians to ensure the long-term, safe and reliable use of our products.
3.We use quality authentic materials, process and manufacture in strict compliance with ISO9001:2000 international quality management to ensure the quality of excellence and the smooth installation!
TSTY Electric Co., Ltd. was established in 2007 and is an excellent and reliable transformer manufacturer in China. The company mainly develops and produces oil-immersed transformers, dry-type transformers, box-type substations and high and low voltage complete sets of equipment.
The equipment put into production and operation of the project advocates energy saving, intelligence, information and mechanization. The company has established the Henan Triangle Energy-saving Transformer Engineering Technology Research Center, with 71 utility model patents and 15 invention patents.
With years of accumulation in the transformer industry and strong technological innovation capabilities, it provides comprehensive solutions for the Chinese power industry. The company is a key procurement unit for large-scale national projects such as State Grid, State Railway Administration, Zhengzhou Coal Group, Pingmei Group and South-to-North Water Diversion.
|
|
