| Brand Name: | TSTY |
| Model Number: | KYN28A-12 |
| MOQ: | 5 units |
| Price: | $2,900.00 - $3,000.00/units |
| Packaging Details: | Wooden packing. |
Switchgear for Sale Metal Armored Removable Switchgear Low Voltage Switchgear

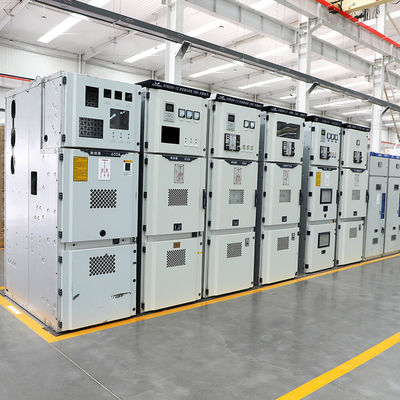

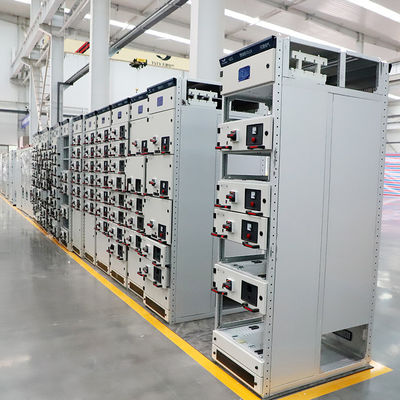

KYN28A-12 (GZS1-12) Indoor AC Metal Clad Intermediate Switchgear is a relatively common high-voltage switchgear at present in China with full name- indoor metal armored removable switchgear. Its rated voltage is 3.6kV~12kV. The equipped vacuum circuit breaker is in the middle of the switch cabinet, that is, the circuit breaker is located in the middle of the front cabinet of the switchgear, so the lower space can be saved for the expansion of other schemes or used as a cable room.
Application Channels: Used for power users such as power plants, substations, factories and mines, as AC 50-60Hz, used in power distribution systems with rated operating currents up to 3150A. Used for power conversion, distribution and control of power, lighting and power distribution equipment.
Product Features:
1. Safe and reliable: the cabinet structure is assembled by multiple bending and assembly of aluminum-zinc plate, fully armored and fully enclosed, the compartments in the cabinet are all independent small compartments separated from each other; perfect "five prevention" interlocking function, reliably preventing misoperation and erroneous entry into the live interval; quick closing grounding switch to achieve reliable protective grounding.
2. Flexible solutions: The switch cabinet has a complete set of solutions, which can flexibly form various system solutions to meet customer requirements; according to the application environment and special requirements, it can also provide high altitude series products, double bus series and various non-standard solutions.
3. Strong practicability: the cabinet shell has high sealing strength to prevent the equipment from being invaded by sundries and insects. The protection level is IP4X; the same model handcart has good interchangeability; the secondary line is laid in the trunking and is well protected , and easy to repair; installation, debugging and maintenance are carried out from the front, and it can be back-to-back to form a double arrangement or be installed against a wall, reducing the floor space; using general accessories and standard spare parts, low maintenance costs.

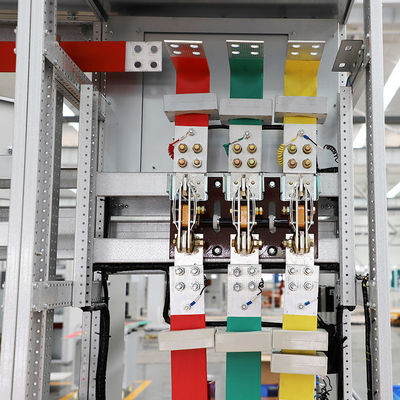

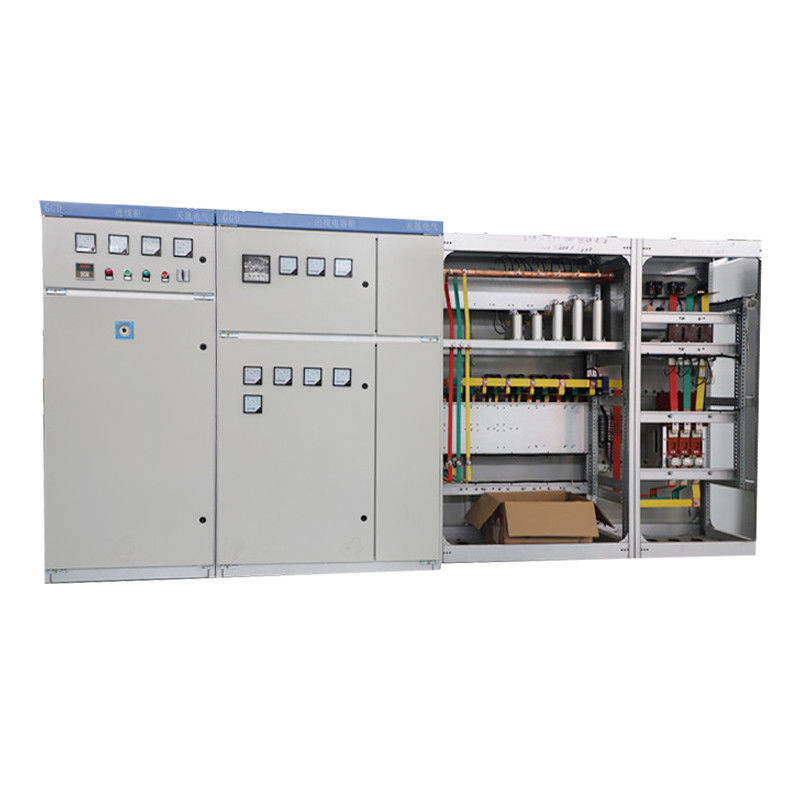

Structural Features:

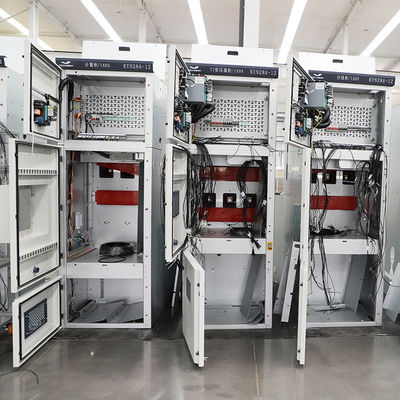

1. The whole is composed of two parts: the cabinet and the middle-mounted withdrawable parts;
2. The cabinet is divided into four separate compartments, the enclosure protection level is IP4X, and the protection level of the circuit breaker room between each compartment is IP2X when the door is opened;
3. With overhead line outlet, cable entry and exit and other functional schemes, it can become a power distribution device of various scheme forms after arrangement and combination.
4. The switchgear can be equipped with both ABB's VD4 vacuum circuit breaker and domestic VS1 vacuum circuit breaker, which is actually a power distribution device with superior performance.
Product Standard:
IEC298 "AC Metal-enclosed Switchgear and Control Equipment with Rated Voltage 1KV and Below"
IEC694 "High Voltage Switch and Control Equipment Sharing Clause"
GB3906 "3-36KV AC Metal Enclosed Switchgear"
DL404 "Order Conditions for Indoor AC High Voltage Switchgear"
Applicable Environment:
1. The highest ambient temperature does not exceed +40℃, and the lowest does not exceed -10℃.
2. Environmental humidity: the daily average relative humidity is ≤95%, and the monthly average relative humidity is ≤90%.
3. The altitude does not exceed 1000m.
4. The earthquake intensity does not exceed 8 degrees.
5. The surrounding air should not be significantly polluted by corrosive or combustible gas, water vapor, etc.
6. There is no frequent severe vibration place.
Model Implication:
Technical Parameter:
| No. | Item | Unit | Technical Parameter | |
| 1 | Rated voltage | KV | 12 | |
| 2 | Rated current | A | 1250 | |
| 3 | Rated short-time power frequency withstand voltage (effective value) | KV | 42 | |
| 4 | Rated lightning impulse withstand voltage (peak value) | KV | 75 | |
| 5 | Rated short-circuit breaking current (effective value) | KA | 31.5 | |
| 6 | Rated short-circuit making current (peak value) | KA | 80 | |
| 7 | Rated thermal stability current (effective value) | Main circuit(4S) | KA | 31.5 |
| Ground loop(4S) | KA | 27.3 | ||
| 8 | Rated dynamic stability current (peak value) | Main circuit | KA | 80 |
| Ground loop | KA | 68.3 | ||
| 9 | Protection level | The shell is IP4X, and IP2X when the compartment and circuit breaker door are opened | ||
1.Our company provides you with project design and process design, and designs and manufactures products according to your equipment purchase plan and specific needs. And train technical and operating personnel for you.
2.The newly purchased products are provided with online assistance for installation and debugging. The products are under the lifelong service system. If problems occur in normal use, we will provide solutions within one working day after receiving user's feedback. We will try our best to get the product up and running as soon as possible. And there are regular visits by professional technicians to ensure the long-term, safe and reliable use of our products.
3.We use quality authentic materials, process and manufacture in strict compliance with ISO9001:2000 international quality management to ensure the quality of excellence and the smooth installation!
TSTY Electric Co., Ltd. was established in 2007 and is an excellent and reliable transformer manufacturer in China. The company mainly develops and produces oil-immersed transformers, dry-type transformers, box-type substations and high and low voltage complete sets of equipment.
The equipment put into production and operation of the project advocates energy saving, intelligence, information and mechanization. The company has established the Henan Triangle Energy-saving Transformer Engineering Technology Research Center, with 71 utility model patents and 15 invention patents.
With years of accumulation in the transformer industry and strong technological innovation capabilities, it provides comprehensive solutions for the Chinese power industry. The company is a key procurement unit for large-scale national projects such as State Grid, State Railway Administration, Zhengzhou Coal Group, Pingmei Group and South-to-North Water Diversion.
|
|
