| Brand Name: | TSTY |
| Model Number: | GCS |
| Price: | $2,500.00 - $2,800.00/units |
| Packaging Details: | Wooden packing. |

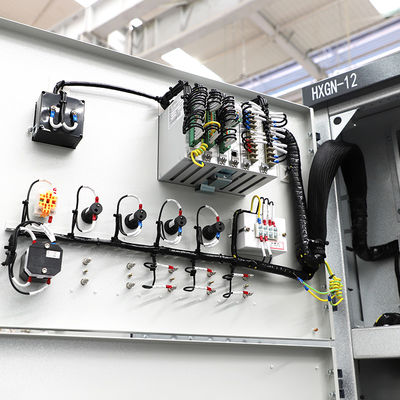

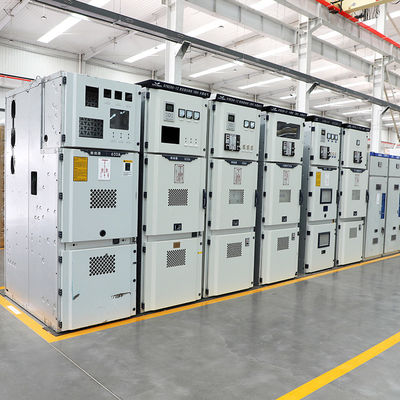

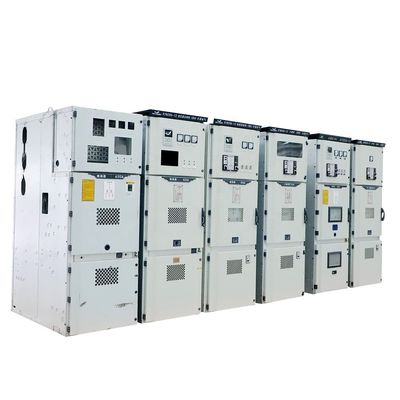

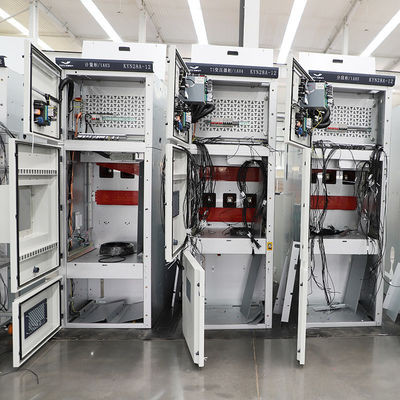

Low high voltage electric power supply cabinet distribution switchgear with price China factory suppliers 10kv 11kv

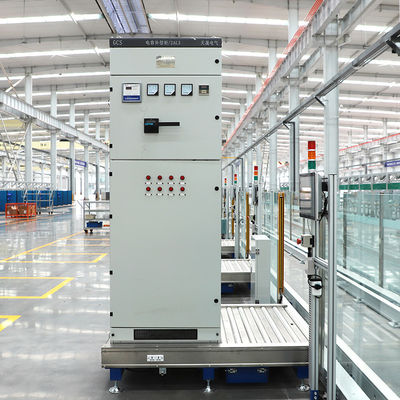

GCS low-voltage withdrawable switchgear, also called low-voltage drawer cabinet, is designed and developed by the two joint design teams according to the requirements of industry authorities, the majority of power users and design units, which meets national conditions, has high technical performance indicators, and can adapt to electricity market development. Our low-voltage withdrawable switchgear can compete with the existing imported products and has been widely used by power users.
Product Features:
1.Increase the heat capacity of the adapter, and greatly reduce the additional temperature rise caused by the temperature rise of the adapter to the connector, cable head, and spacer plate.
2.The separation between functional units and compartments is clear and reliable, and the failure of one unit does not affect the work of other units, so that the failure is limited to a minimum.
3.The horizontal arrangement of the busbar makes the device have good dynamic and thermal stability, and can withstand the impact of 80/176kA short-circuit current.
4.The number of circuits in a single MCC cabinet is as many as 22, and the needs of large single-unit power generation, petrochemical systems and other industries for automated electric door (machine) groups are fully considered.
5.The connection between the device and the external cable is completed in the cable compartment, and the cables can be entered and exited up and down. The zero sequence current transformer is placed in the cable compartment, making installation and maintenance easy.
6.The same power distribution system can limit the short-circuit current through the matching of current-limiting reactors, stabilize the bus voltage at a certain value, and partially reduce the requirements for the short-circuit strength of the components.
7.The drawer unit has a sufficient number of secondary plug-ins (32 pairs for 1 unit and above, 20 pairs for 1/2 unit). It can meet the requirements of the number of connection points of the computer interface and the automatic control loop.
Model Implication:
Technical Parameter:
| Rated Voltage of Main Circuit | AC 380/400/600 | |
| Rated voltage of auxiliary circuit(V) | AC 220,380(400) DC 110,220 | |
| Rated phase(Hz) | 50(60) | |
| Rated insulation voltage(V) | 600(1000) | |
| Rated current(A) | Horizontal bus | ≤4000 |
| Vertical bus(MCC) | 1000 | |
| Busbar rated short-time withstand current(kA/1s) | 50,80 | |
| Busbar rated peak withstand current(kA/0.1s) | 105,176 | |
| Power frequency test voltage(V/1min) | Main circuit | 2500 |
| Auxiliary circuit | 1760 | |
| Busbar | Three-phase four-wire system | A.B.C.PEN |
| Three-phase five-wire system | A.B.C.PE.N | |
| Protection level | IP30 . IP40 | |
Cabinet dimension:
| Height (mm) | 2000 | |||||||||
| Width (mm) | 400 | 600 | 800 | 1000 | ||||||
| Height (mm) | 800 | 1000 | 800 | 1000 | 600 | 800 | 1000 | 600 | 800 | 1000 |
1.Our company provides you with project design and process design, and designs and manufactures products according to your equipment purchase plan and specific needs. And train technical and operating personnel for you.
2.The newly purchased products are provided with online assistance for installation and debugging. The products are under the lifelong service system. If problems occur in normal use, we will provide solutions within one working day after receiving user's feedback. We will try our best to get the product up and running as soon as possible. And there are regular visits by professional technicians to ensure the long-term, safe and reliable use of our products.
3.We use quality authentic materials, process and manufacture in strict compliance with ISO9001:2000 international quality management to ensure the quality of excellence and the smooth installation!
TSTY Electric Co., Ltd. was established in 2011 and is an excellent and reliable transformer manufacturer in China. The company mainly develops and produces oil-immersed transformers, dry-type transformers, box-type substations and high and low voltage complete sets of equipment.
The equipment put into production and operation of the project advocates energy saving, intelligence, information and mechanization. The company has established the Henan Triangle Energy-saving Transformer Engineering Technology Research Center, with 71 utility model patents and 15 invention patents.
With years of accumulation in the transformer industry and strong technological innovation capabilities, it provides comprehensive solutions for the Chinese power industry. The company is a key procurement unit for large-scale national projects such as State Grid, State Railway Administration, Zhengzhou Coal Group, Pingmei Group and South-to-North Water Diversion.
|
|
