6kV 11kV Electric Oil Immersed Filled Power Distribution Transformer for Three Phase

Name: 6kV 11kV Electric Oil Immersed Filled Power Distribution Transformer for Three Phase
Brand: TSTY
SKU: S11
Price: 1 USD
Availability: InStock
Rating: 4.5 (192 reviews)

Brand Name:	TSTY
Model Number:	S11
Price:	$1,100.00/units 1-1 units
Packaging Details:	Wooden packing.

Detail Information

Product Description

Detail Information

Place of Origin:

Henan, China

Certification:

ISO9001

Use:

Power

Phase:

Three

Coil Structure:

TOROIDAL

Coil Number:

Product Name:

Electric Oil Type Power Distribution Transformer

Type:

Oil-filled Transformer

Frequency:

50/60Hz

Material:

Copper / Aluminium

Standard:

IEC / GB

Transformer Type:

S11 Oil-immersed Transformer

Vector Group:

Dyn11 / Yyn0

Warranty:

2 Years

Package:

Wooden Case

Port:

Qingdao Port

Supply Ability:

30 Unit/Units per Day

Product Description

Products Description

S11 6kV 11kV Electric Oil Immersed Filled Power Distribution Transformer Prices List

The S13 type is developed by our company on the basis of S11 distribution transformers through the research and application of new materials and new processes, and the combination of independent innovation and technology introduction. Through the optimized and innovative design of the core and coil structure, the goal of reducing no-load loss and noise is achieved. Compared with the current national standard JB/T10088-2004, the noise level has dropped by an average of 20%.

Product Features:

1.The transformer core is laminated with imported cold-rolled silicon steel sheets, which greatly reduces the no-load loss and no-load current.

2.High and low voltage windings are made of oxygen-free copper, and low voltage windings adopt double-layer cylindrical structure. high voltage winding adopts multilayer cylindrical structure. 1000kVA and above can adopt foil winding. The product has strong short-circuit resistance.

3.The transformer connection group uses Dyn11 to reduce the impact of harmonics on the power grid and improve the quality of power supply. 4.The transformer is a fully sealed structure, which prolongs the service life

5.The measured noise value is lower than the standard.

Product Details

Product Standard:

GB/T 1094 Power Transformer GB/T 15164 Oil-immersed Power Transformer Load Guide GB/T 6451 Three-phase Oil-immersed Power Transformer Technical Parameters and Requirements IEC/60076

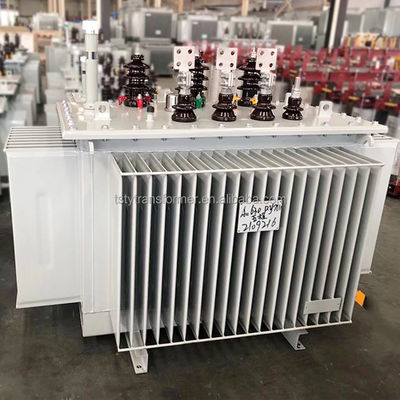

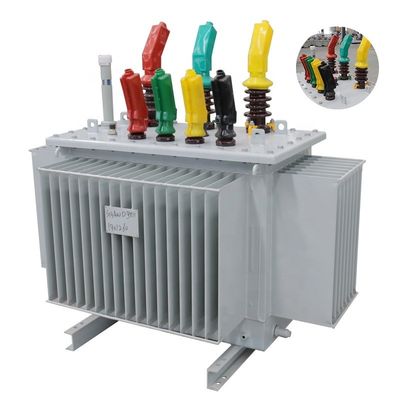

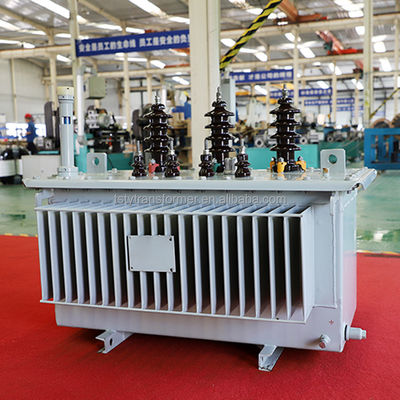

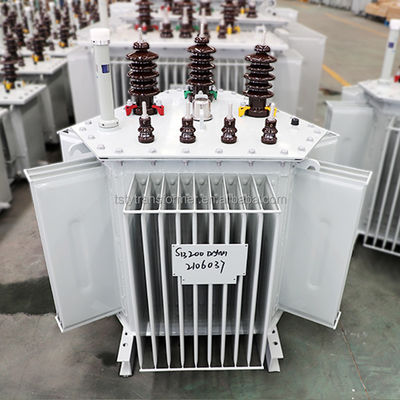

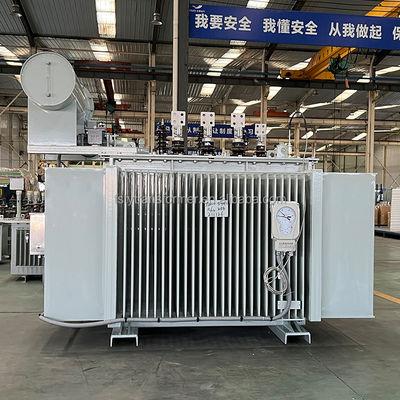

Product Display

Applicable Environment:

1.The altitude does not exceed 1000m. We can also customize according to your demand. 2.Maximum temperature: +40℃ 3.Average temperature of the hottest month: +30℃ 4.Minimum temperature: -10℃ (outdoor) 5.Maximum daily temperature difference: 25K 6.Ice thickness: 10mm 7.Monthly average maximum relative humidity (25℃): 90% 8.Installation location: outdoor

Product packaging

Company Profile

TSTY Electric Co., Ltd. was established in 2011 and is an excellent and reliable transformer manufacturer in China. The company mainly develops and produces oil-immersed transformers, dry-type transformers, box-type substations and high and low voltage complete sets of equipment.

The equipment put into production and operation of the project advocates energy saving, intelligence, information and mechanization. The company has established the Henan Triangle Energy-saving Transformer Engineering Technology Research Center, with 71 utility model patents and 15 invention patents.

With years of accumulation in the transformer industry and strong technological innovation capabilities, it provides comprehensive solutions for the Chinese power industry. The company is a key procurement unit for large-scale national projects such as State Grid, State Railway Administration, Zhengzhou Coal Group, Pingmei Group and South-to-North Water Diversion.

Certifications

After sale service

1.Our company provides you with project design and process design, and designs and manufactures products according to your equipment purchase plan and specific needs. And train technical and operating personnel for you.

2.The newly purchased products are provided with online assistance for installation and debugging. The products are under the lifelong service system. If problems occur in normal use, we will provide solutions within one working day after receiving user's feedback. We will try our best to get the product up and running as soon as possible. And there are regular visits by professional technicians to ensure the long-term, safe and reliable use of our products.

3.We use quality authentic materials, process and manufacture in strict compliance with ISO9001:2000 international quality management to ensure the quality of excellence and the smooth installation!

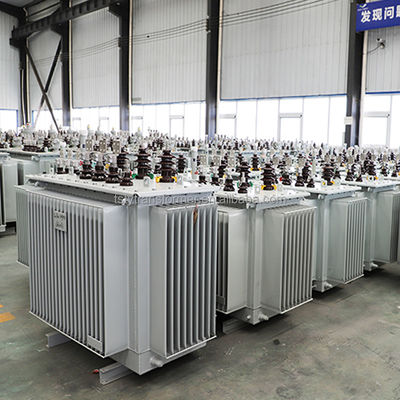

Factory Display

FAQ

Q: Who are we? A:We are a big professional manufacturer of oil immersed transformer, dry type transformer, transformer substation,HV and LV switchgear, established in 2011 year . Q: Why should you buy from us not from other suppliers? A:As an enterprise specializing in transformer production for 12 years. ISO9001-2008, OHSAS 18001:2007, ISO4001:2004L .CE,CCC,UL,CSA,TYPE TEST REPORT,etc certificates,Products match IEC, IEEE, ANSI, , GOST standard, we have high quality, fast delivery,guarantee after-sales service and factory price. Q: How do transformers been shipped? A: Transformers always been delivered by ship,train or truck for oversea,which with main active body in bulk and accessories in wooden cases. Q: Can your product be customerized? A: Considering differences in voltage, frequency and other speciality of transformer product in different countries and regions,our product can be customerized according to your requirements. Q: Do you offer guarantee for the products? A: Yes. We offer at least two years guarantee for all of our transformers. Q: Do you accept FAT(Factory Acceptance Test)? A: Yes. It’s available. We are responsible for each set transformer’s testing. Q: Do you assign engineer for after-sale service? A: Yes. For our products,we all show after-sale guide installation adn question inquiry.
